1.Product type:

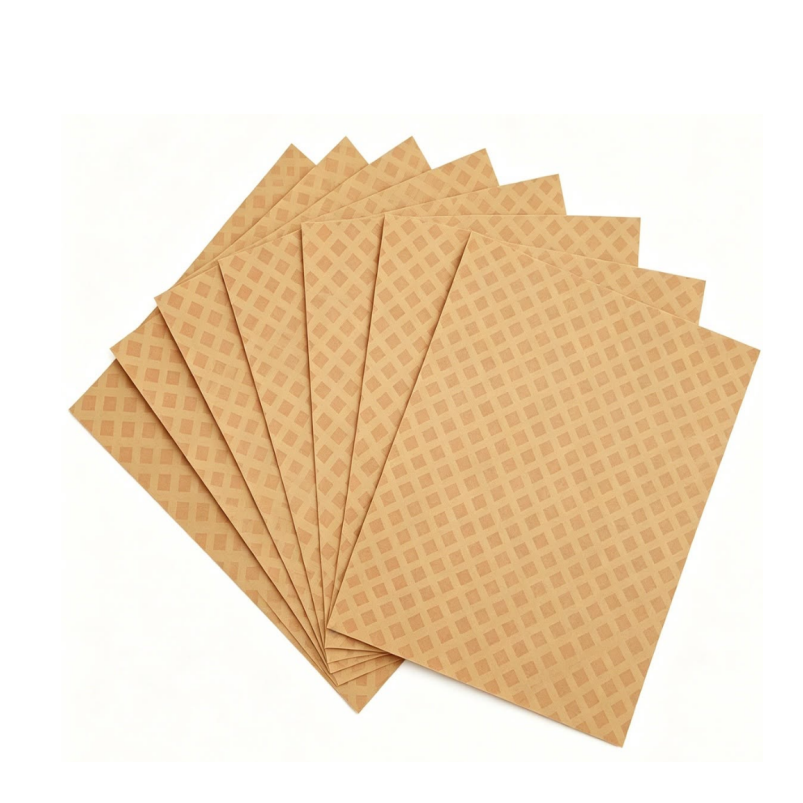

Single-sided diamond dotted insulating paper

Double-sided diamond dotted insulating paper

2. Specifications and Parameters:

Thickness: 0.08 – 0.30 millimeters

Standard width: 1000 millimeters / 1150 millimeters

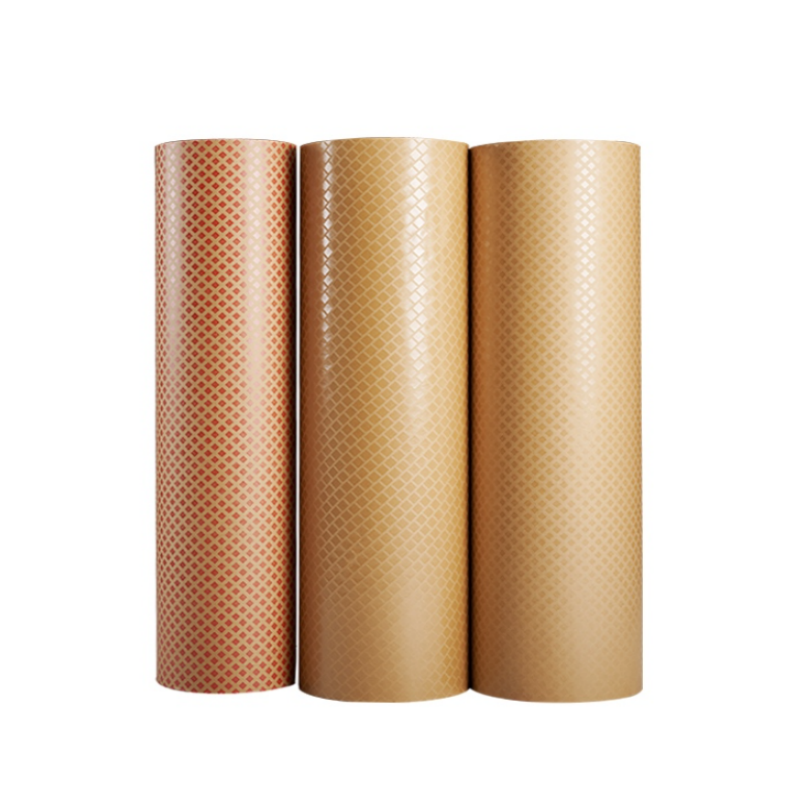

Roll length: Customizable

Core diameter: 76 millimeters

Custom service: Available upon request

3. Product Features:

After curing, it exhibits excellent bonding strength.

It has outstanding electrical insulation performance.

It boasts excellent mechanical strength and flexibility.

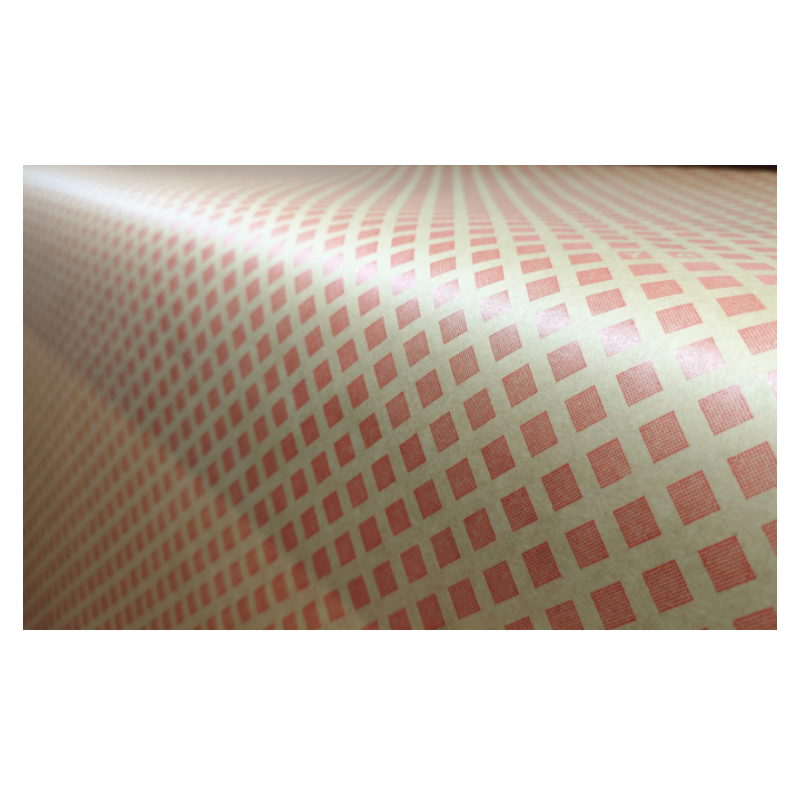

It has a uniform diamond-shaped epoxy resin coating.

It has excellent compatibility with transformer oil.

It is suitable for both automatic and manual winding methods.

There are two types available for selection: single-sided adhesive coating and double-sided adhesive coating.

4. Application fields:

Power transformers        Distribution transformers        Transformer coil insulation layer         Inter-layer insulation treatment

Phase-to-phase insulation           Electrical insulation components

5. Available types:

Single-sided rhombic dot-shaped insulating paper

Single-sided material coated with diamond epoxy adhesive, suitable for various standard transformer winding applications. It maintains the flexibility of the winding while ensuring good connectivity.

Double-sided diamond-shaped dot-shaped insulating paper

A material coated on both sides with diamond epoxy adhesive, which can provide a stronger interlayer bonding effect and is suitable for high-strength transformer coil structures as well as insulation applications with strict requirements.
