Product

1.Specification
MOQ: 1,000 meters
Wall thickness: 1-4mm
Length: 1000mm or customized
Inner diameter: 3-50mm
Color: Natural or light brown

2.Technical Performance Parameters
The product is manufactured using different base paper thicknesses (0.05mm, 0.075mm, 0.08mm, and 0.13mm), with the following technical specifications:

Thickness ranges from 0.35±0.05mm to 0.80±0.10mm. Ash content does not exceed 0.7%-1.0%. Moisture content is controlled within 6.0%-9.0%. Diethyl ether content does not exceed 0.3%-0.5%. The pH of the water extract remains stable between 6.0 and 8.0. Polluted oil content does not exceed 0.1%.

Tensile strength (MD) is no less than 1.96-3.3 KN/m, and tensile strength (TD) is no less than 1.3-2.7 KN/m. Wrinkling is no less than 50%. Breakdown voltage is no less than 950-1000 V/layer. Electric conductivity is controlled within 8.0-10.0 mS/m.

3.Characters
Heat-resistance rated A Class (105°C), offering excellent high-temperature performance
Good dielectric strength, ensuring stable and reliable insulation
Excellent compatibility with insulating liquids
Free from conductive particles, ensuring high product purity

4.Application

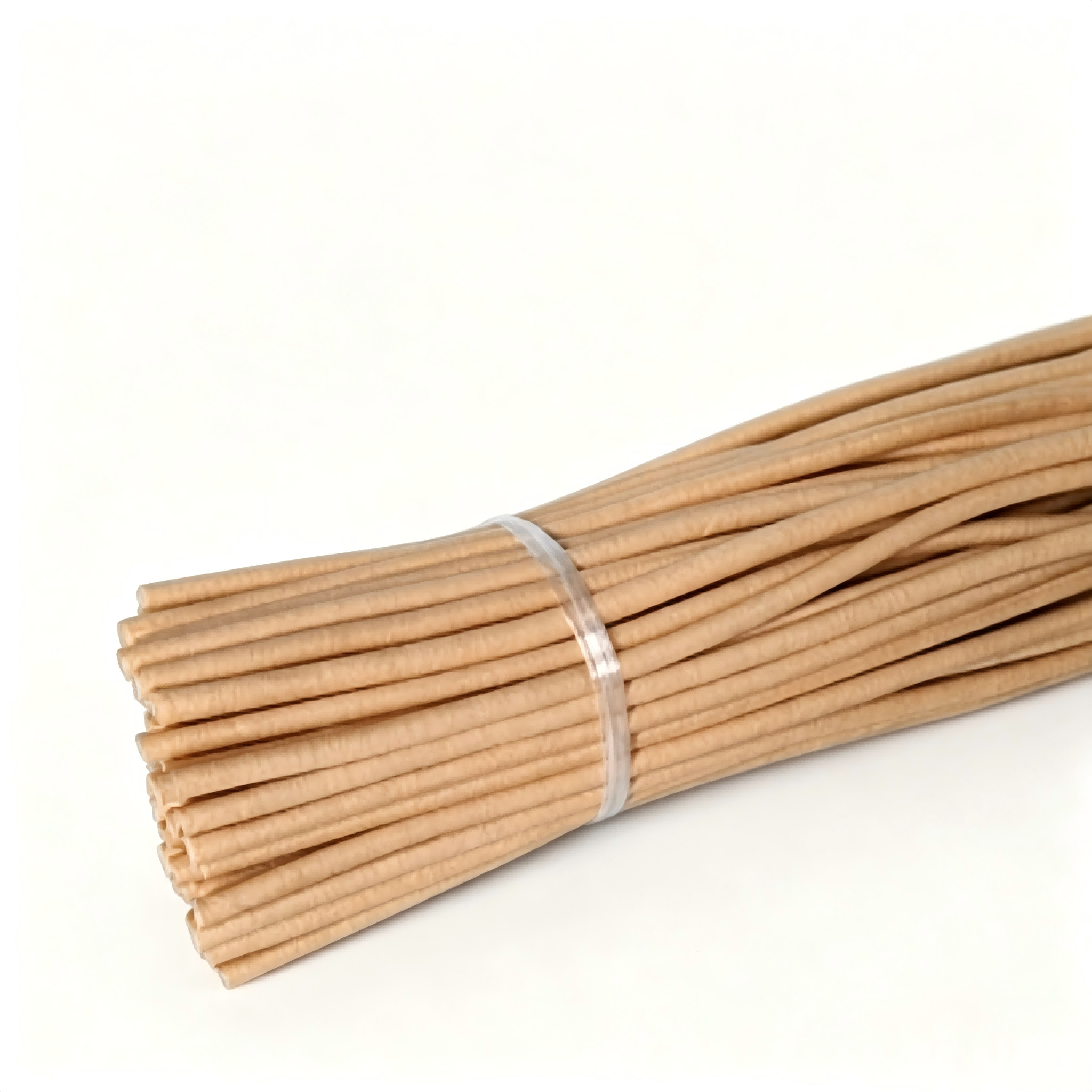

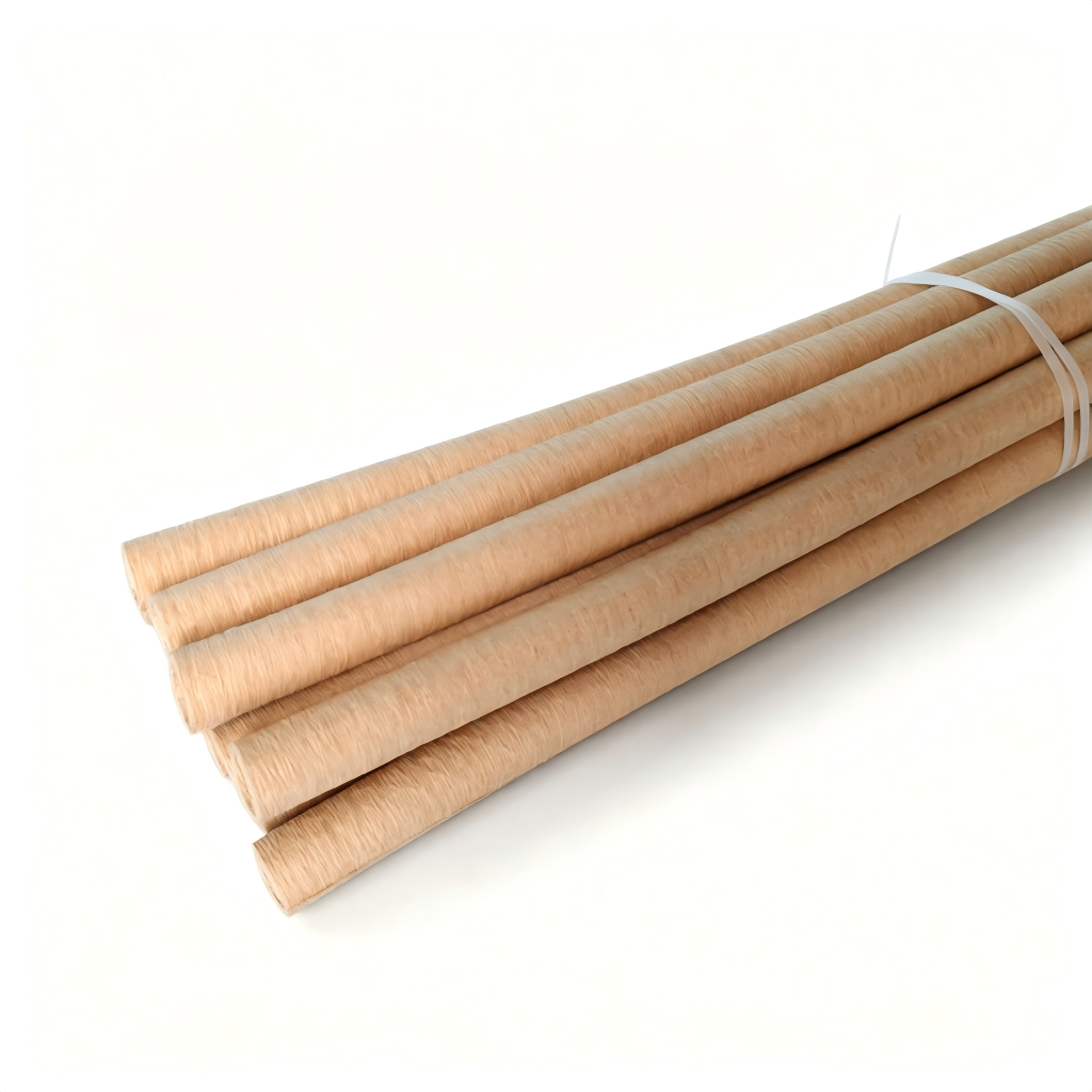

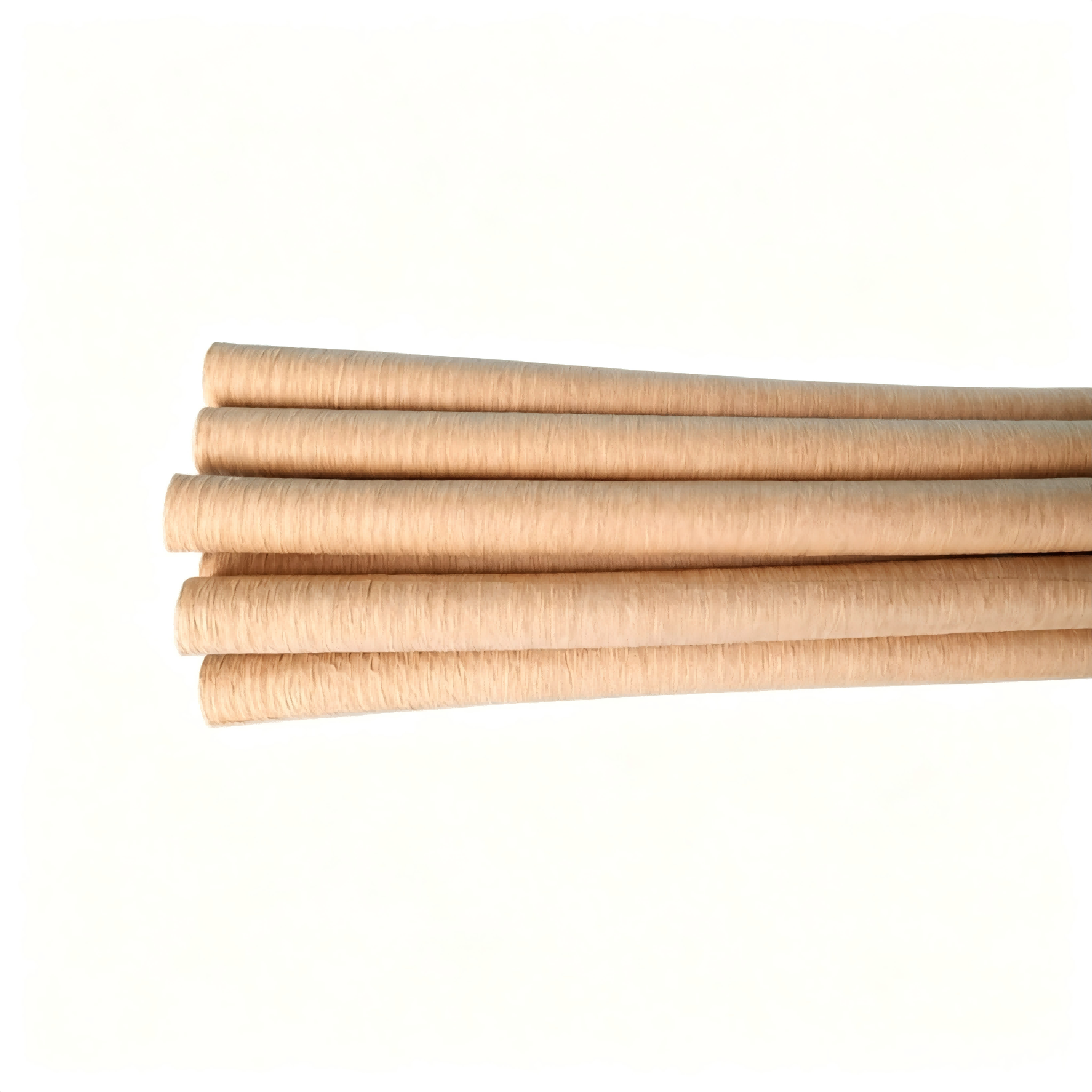

Crepe paper tubes are suitable for irregular shapes and surfaces where normal insulation materials fail to reach. They are used as sleeves for interconnection of terminals in magnet wire, layer, current transformers, or as shielding materials.

5.Package
Packed with plastic bags first, then put into cartons, ensuring product cleanliness and safety during transportation.
