Epoxy Resin Bushings

Our vacuum-cast epoxy resin bushings feature excellent insulation, high mechanical strength, moisture resistance, pollution resistance and flame retardancy. With plate-connected structure, low contact resistance and stable conductivity, they are easy to install and maintain, effectively preventing flashover for indoor and outdoor use.

Product Parameters
- 2kV: 630A–9800A, 10kV/1min power frequency withstand voltage, 20–30kV lightning impulse voltage
- 5kV: 5500A–8500A, 15kV/1min power frequency withstand voltage, 45kV lightning impulse voltage
- 6kV: 630A–5000A, 15kV/1min power frequency withstand voltage, 45kV lightning impulse voltage
- 5kV: 630A–5000A, 21kV/1min power frequency withstand voltage, 60kV lightning impulse voltage

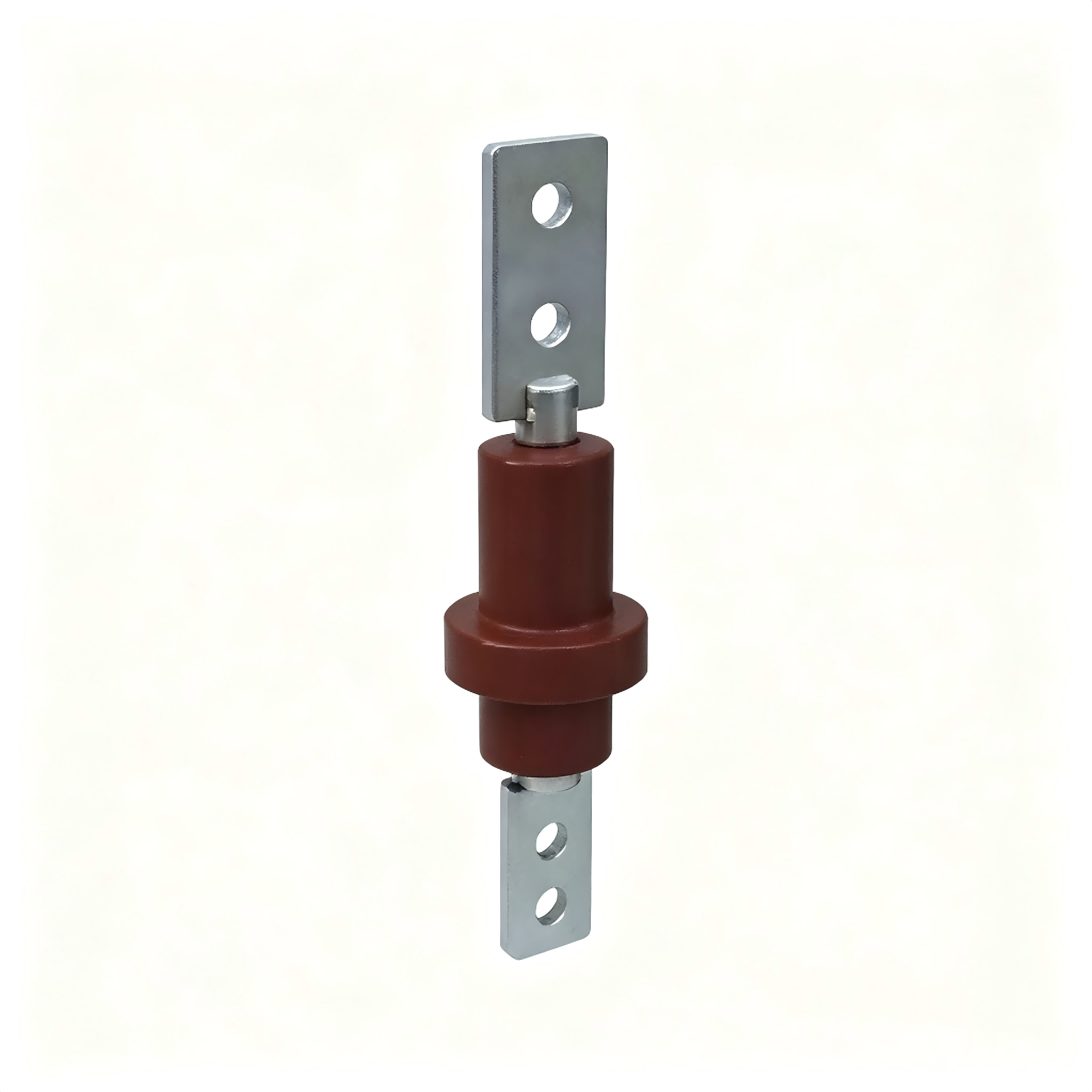

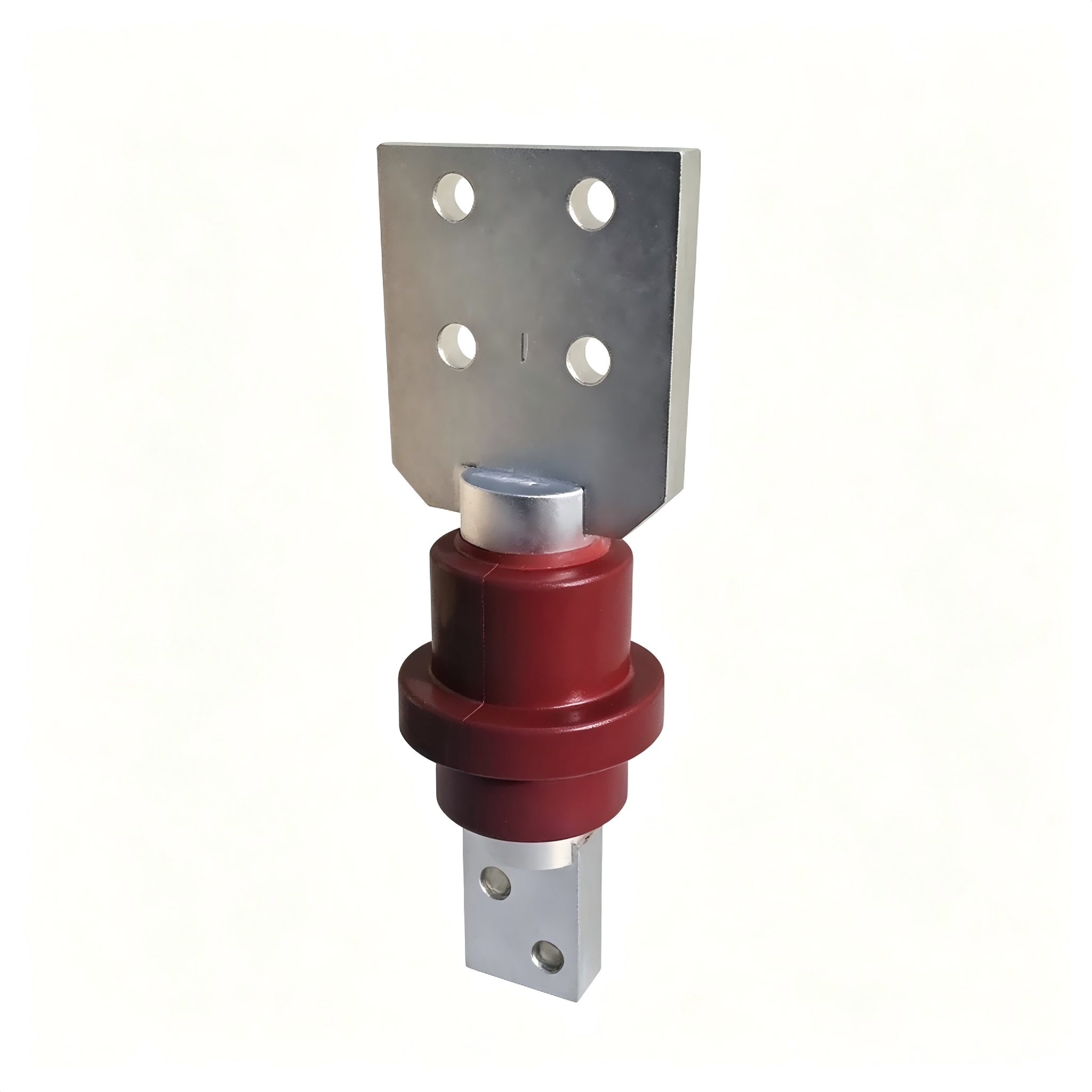

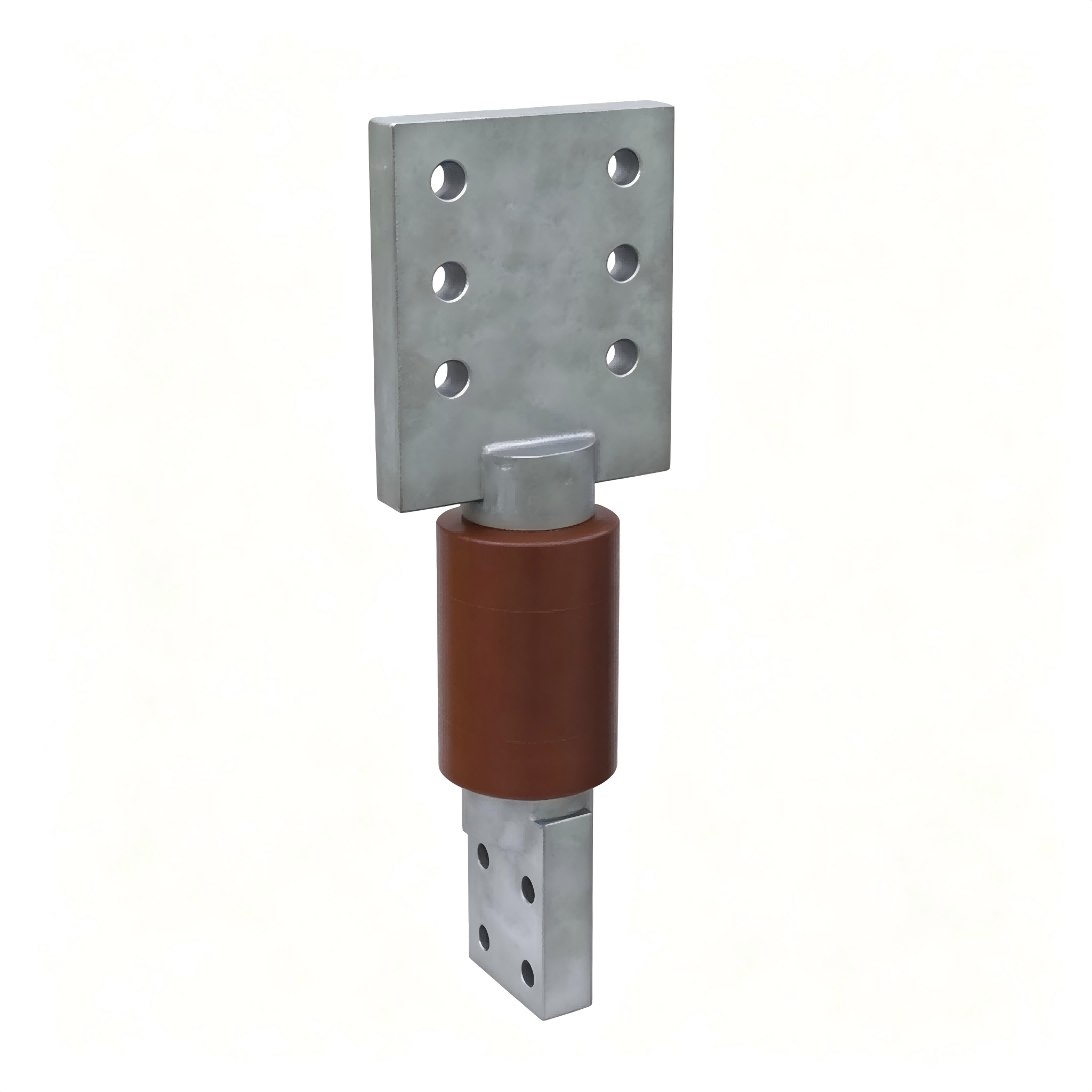

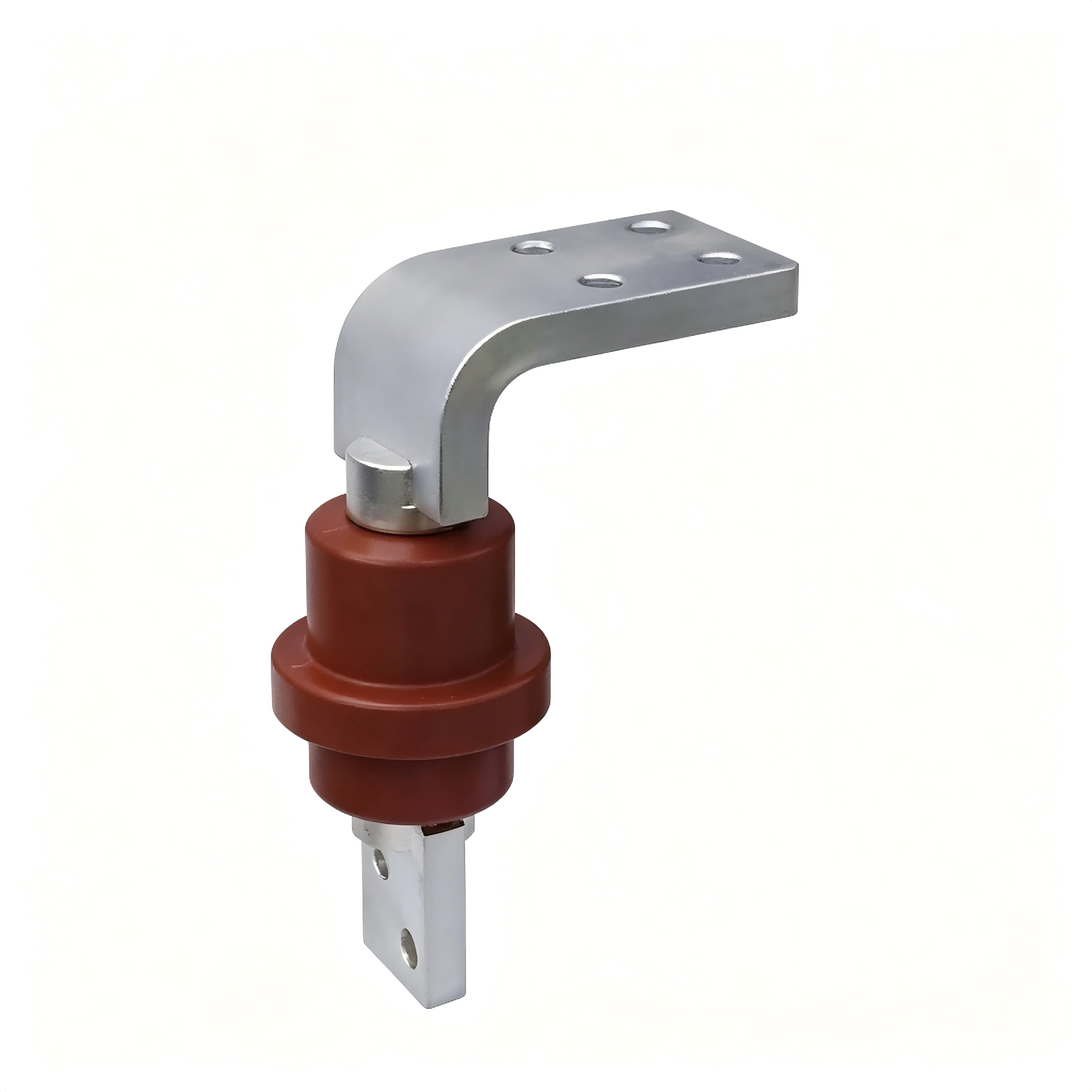

Straight and 90° bent (C-type) styles are available. All sizes and mounting specifications can be customized.

Features & Applications

Safe and reliable with optimized creepage distance, suitable for prefabricated substations, switchgears, transformers and other high and low voltage power distribution equipment. We support customized services for global clients.
