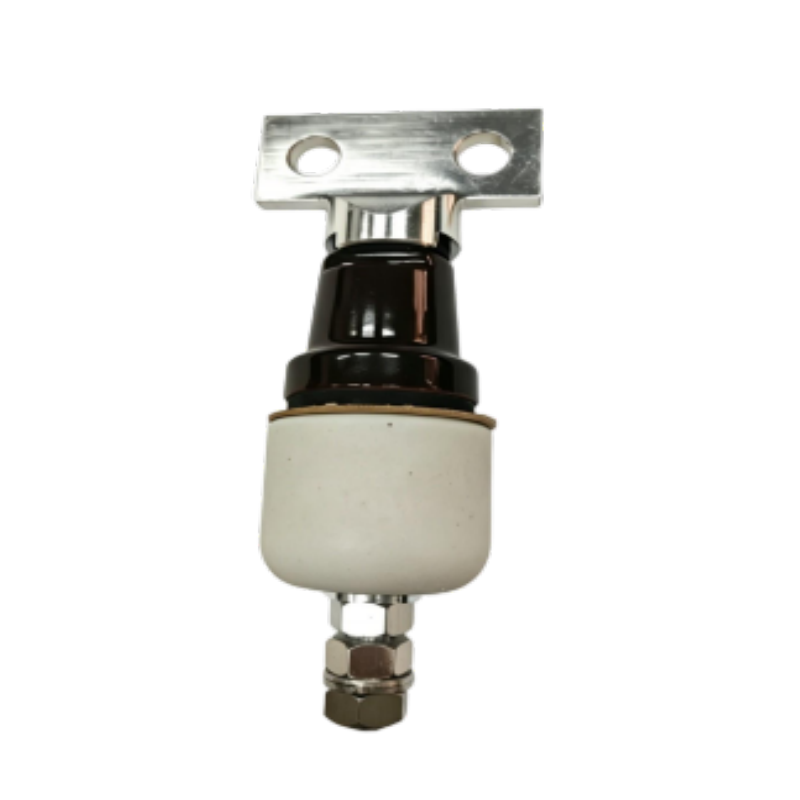

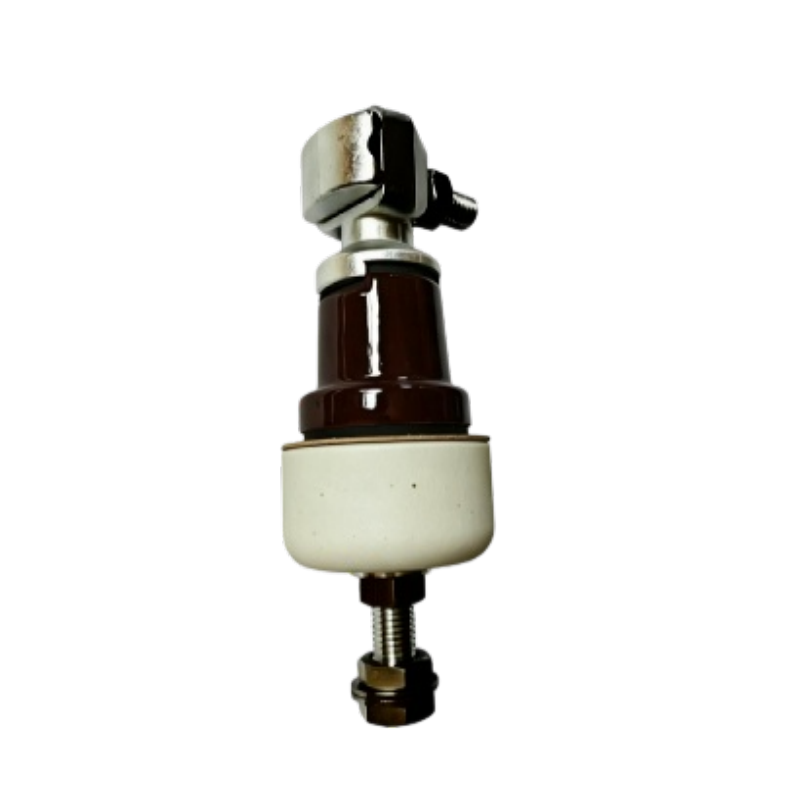

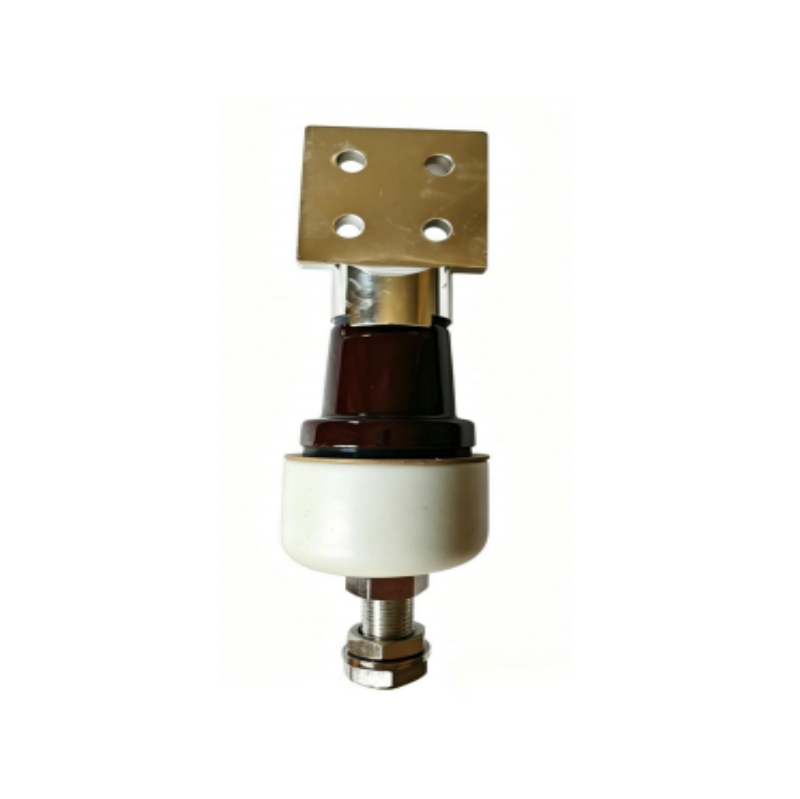

Brazilian transformer bushing

1.The product covers a wide range of voltage and current: The low-voltage series has a rated voltage of 1.3 kV and a rated current ranging from 160A to 800A; the high-voltage series has a rated voltage ranging from 15 kV to 36.2 kV and a rated current of 160A, meeting the diverse application needs of distribution transformers and power transformers.

2. The product offers two structural configurations to meet different installation requirements: Structure A is an internal installation structure, while Structure B is an external aluminum pressure plate structure. The high-voltage series has a maximum creepage distance of up to 680mm, ensuring reliable operation in highly polluted environments. The umbrella skirt configuration offers various options such as single umbrella, 4-umbrella, 6-umbrella, 10-umbrella, and 12-umbrella, depending on the voltage level.

3. All the bushings are made of high-quality porcelain insulators, featuring excellent mechanical strength, long-term stable electrical insulation performance, and proven reliability through on-site verification. The opening size of the box cover is precisely matched to the Brazilian transformer standard, and it also supports customized specifications design according to OEM project requirements.

4. Our bushings have gained wide recognition from numerous transformer manufacturers and power enterprises in Brazil and Latin America. With strict quality control, stable supply capabilities, competitive prices, combined with CE certification qualifications and the manufacturing advantages of our own factory, we provide customers with comprehensive and reliable product guarantees.

Please feel free to contact us to obtain technical drawings, detailed data manuals, and customized quotations tailored to your project requirements.
