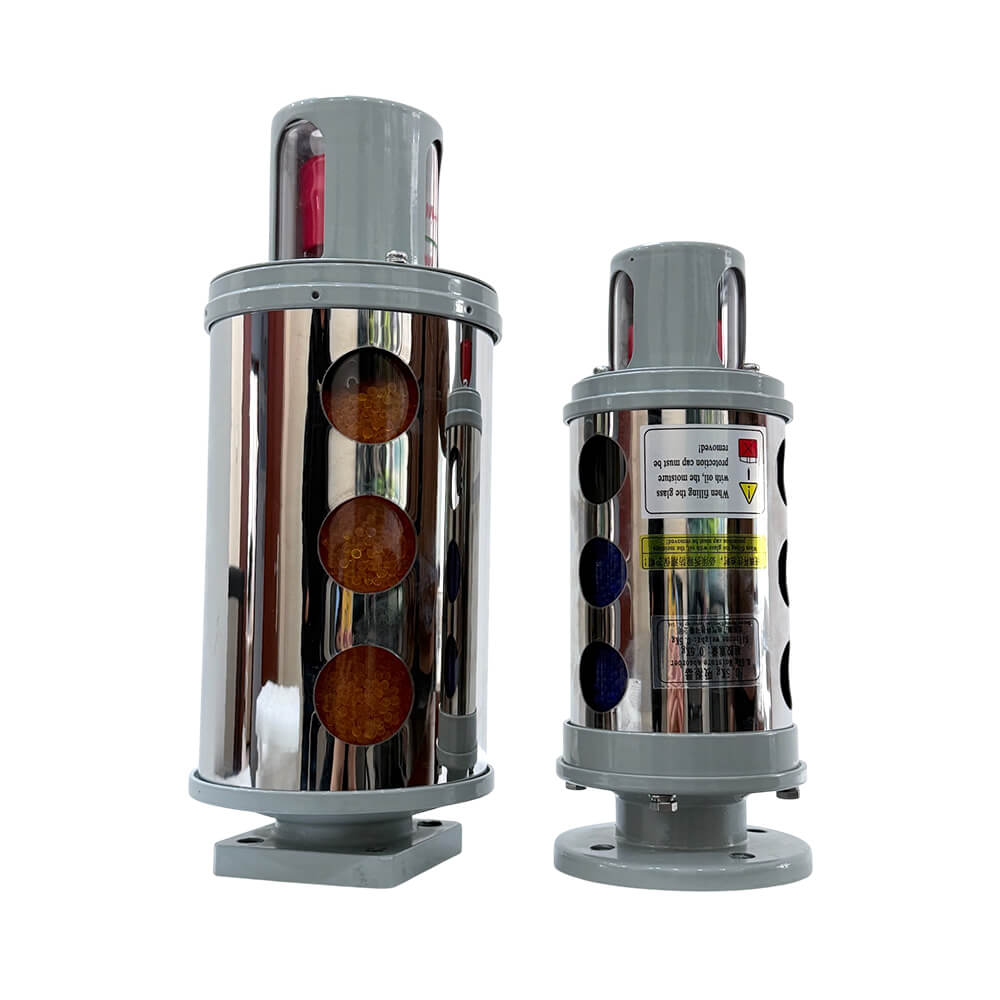

Uses:

The silica gel breather‌ is an air purification device, which is installed at the end of the air inlet of the oil storage cabinet of the transformer and transformer, which can effectively filter the dust and moisture in the air to maintain the cleanliness and electrical performance of the transformer oil.

Features:

1. The clean room uses a fully transparent and lengthened tempered glass tube to extend the filtration time, which is significantly higher than the conventional silica gel breather‌ by 30%.
2. The bottom adopts double-layer transparent tempered glass structure. After the oil cup is refueled, the suction and exhalation of the silica gel breather‌ can be directly observed when the transformer is operating.
3. The red protective cap at the bottom can prevent the silica gel from being contaminated during transportation. (The protective cap is for transport only, the moisture protection cap must be removed when filling the glass with oil)

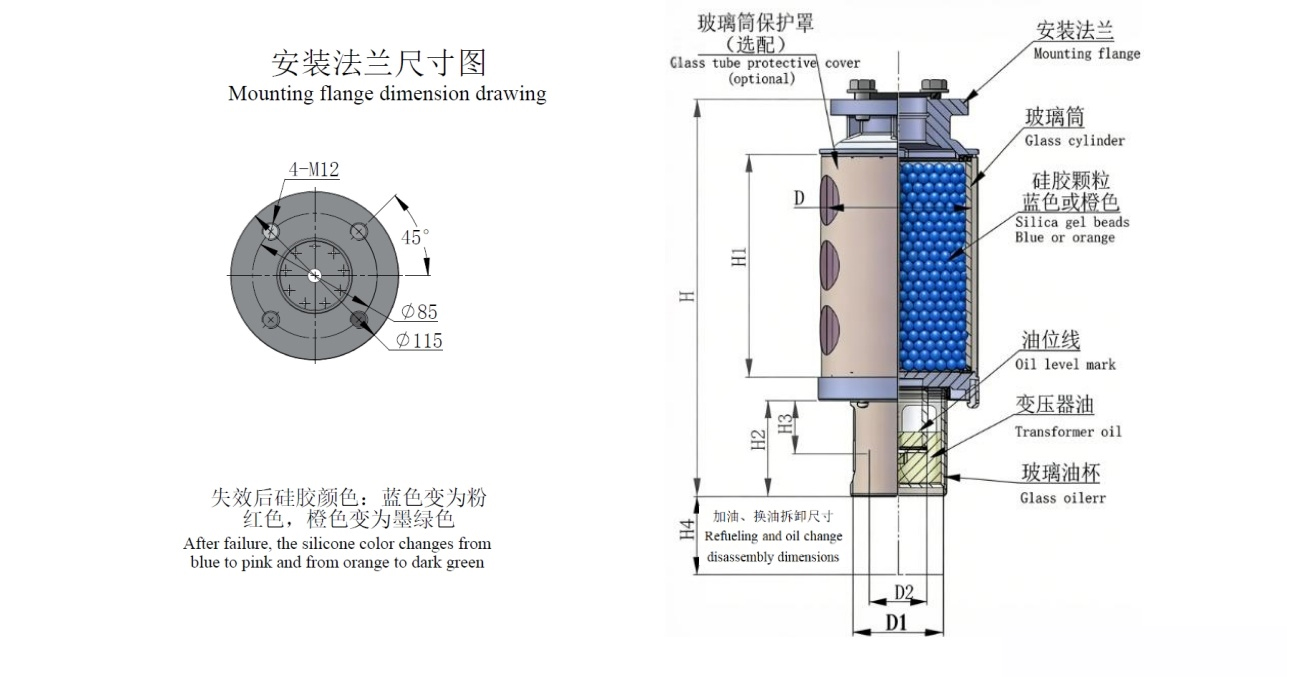

Non detachable silica gel breather‌

Model	H	H1	H2	H3	H4	D	D1	D2	Installation size	Filled silicone weight Kg
0.5Kg	265.5	146	61	29.5	≥70	89	57.5	41	φ115	0.5
1Kg	317.5	177	77	42.5	≥70	118	75	48	φ115	1
1.5Kg	347.5	237	77	42.5	≥70	118	75	48	φ115	1.5

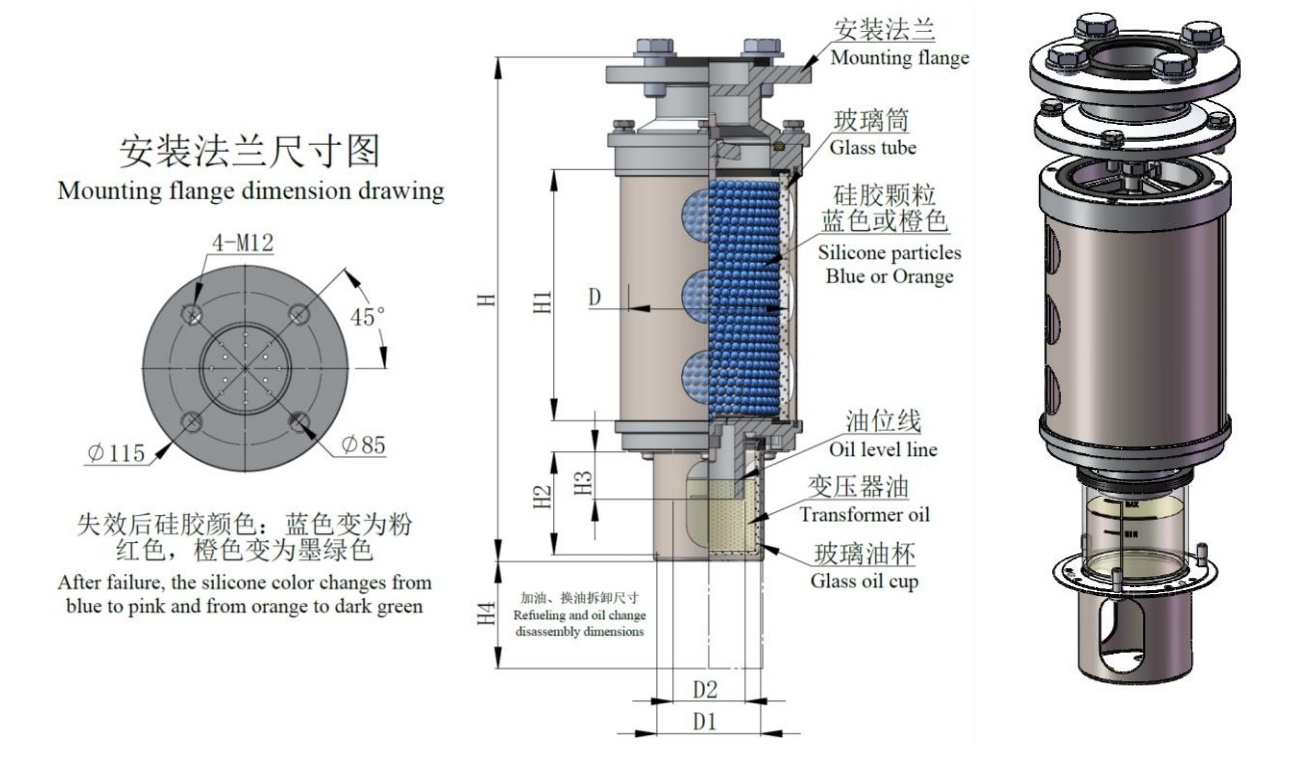

Detachable silica gel breather‌

Model	H	H1	H2	H3	H4	D	D1	D2	Installation size	Filled silicone weight Kg
0.5Kg	281.5	146	61	29.5	≥70	89	57.5	41	φ115	0.5
1Kg	335	177	77	42.5	≥70	118	75	48	φ115	1
1.5Kg	365	237	77	42.5	≥70	118	75	48	φ115	1.5
3Kg	459	257.5	113.5	73.6	≥105	160	105	80	φ115	3
5Kg	588	387.5	113.5	73.6	≥105	160	105	80	φ115	5
7Kg	718	517.5	113.5	73.6	≥105	160	105	80	φ115	7
10Kg	591.5	384	113.5	73.6	≥105	230	105	80	φ115	10

Note: In actual selection, the weight of the hygroscopic agent should not be less than one thousandth of the weight of the oil in the transformer oil storage tank.

The product provides a variety of color options, specifically described as follows:

Color card No	Color	Optionality of choice
RAL7038	Agate grey	Default
RAL7042	A Traffic grey A	Optional
RAL7035	Light grey	Optional

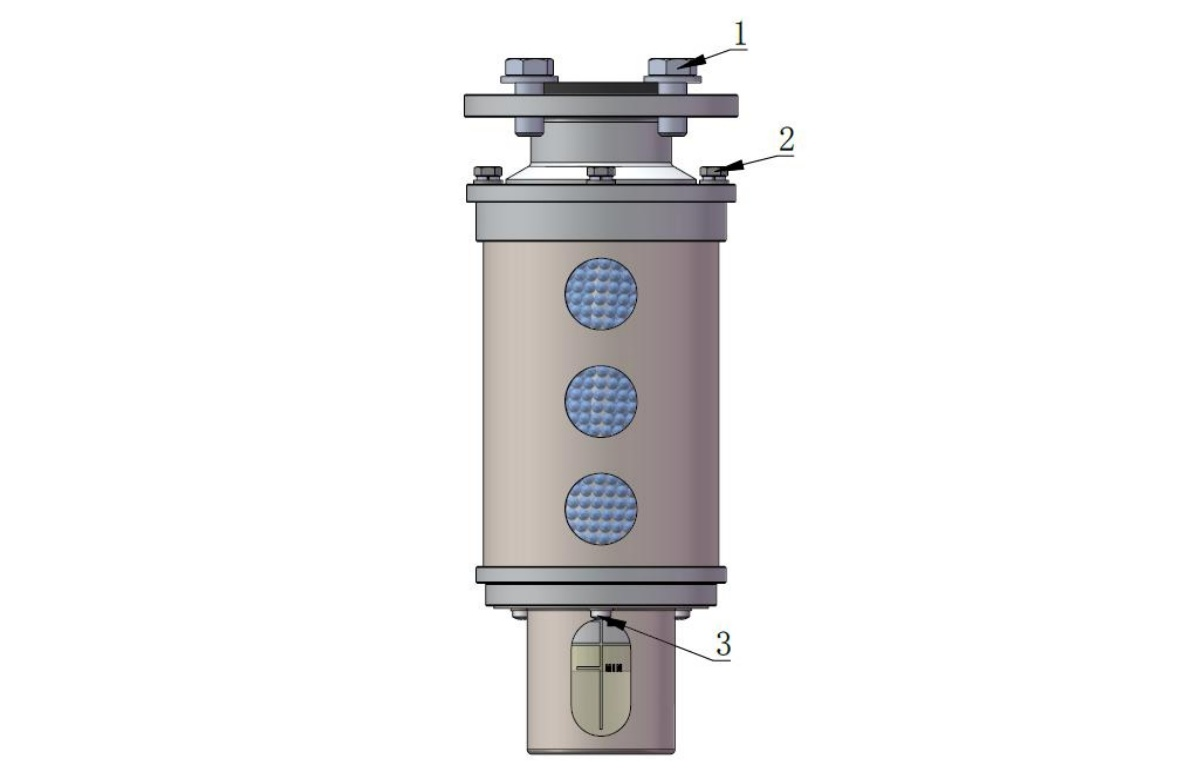

Torque Reference Table

Number	Assembly position		Thread specification	Recommended torque	Assembly tool specifications		Notes
1	Flange installation hole		M12 Bolt	35～40Nm		19mm
2	Glass tube	0.5kg、1.0kg、1.5kg	M6	7～8Nm		10mm	Suggest manual installation
2	Glass tube	3kg、5kg、7kg、10kg	M8	18～22Nm		6mm	Suggest manual installation
3	Glass oil cup	0.5kg、1.0kg、1.5kg 3kg、5kg、7kg	M5	4～5Nm		PH2	Suggest manual installation
3	Glass oil cup	10kg	M6	7～8Nm		5mm	Suggest manual installation
