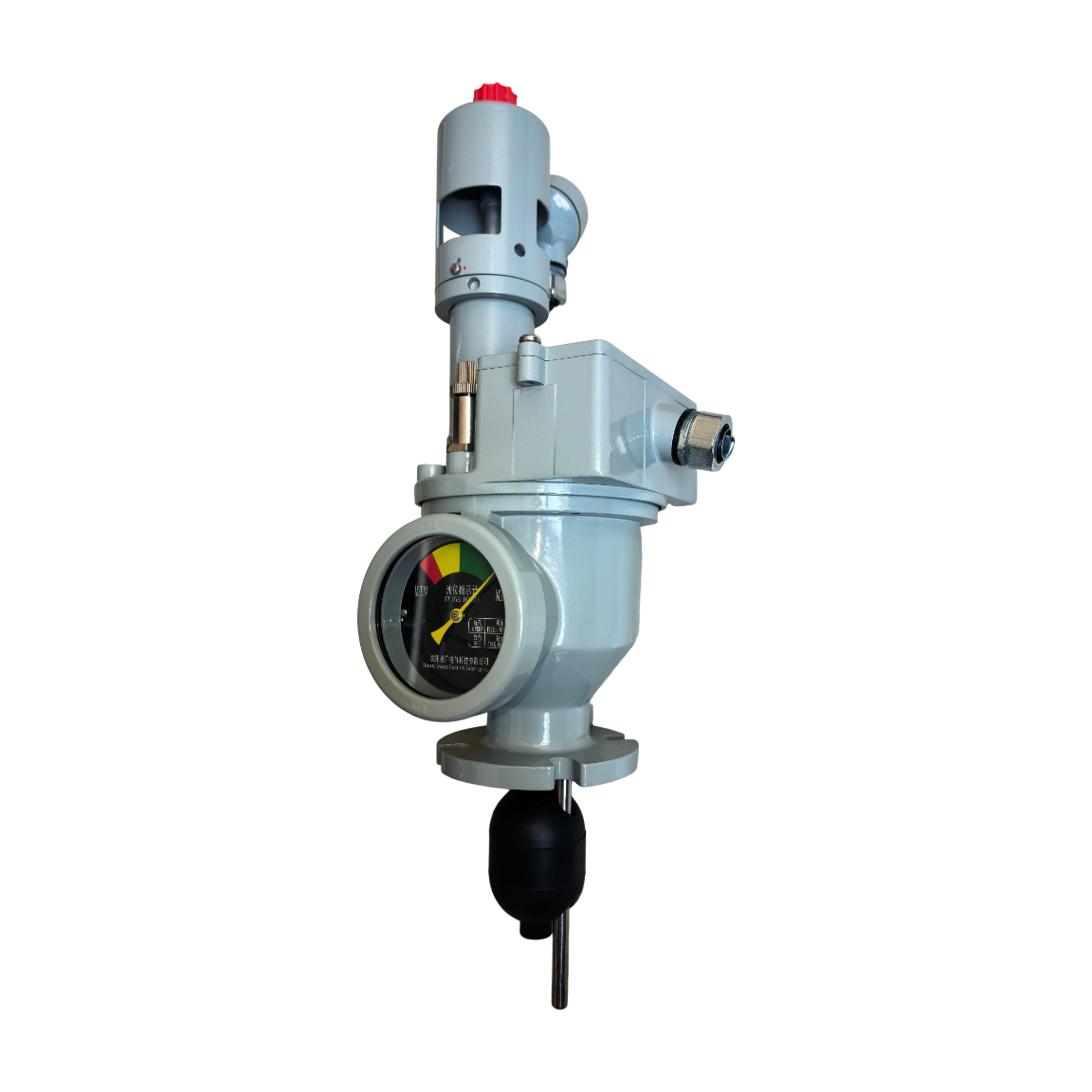

QYW Series Multi-function Protector
The QYW series multi-function protector is a dedicated protective relay for fully sealed transformers, which can provide functions such as light gas protection, low oil level protection, heavy gas protection (pressure over limit protection), oil level display (oil level gauge), oil injection, oil replenishment, pressure release, remote temperature display and protection for transformers. It can greatly facilitate the power supply department to monitor the operation of fully sealed transformers and diagnose transformer faults. It is suitable for electrical equipment such as oil immersed transformers, oil immersed reactors, and power capacitors, especially for fully sealed transformers and box type substations.
1. Installation position: Installed on the top of the box cover.
2. Environmental requirements: -30 ℃ to+70 ℃(can be customized according to user needs to support up to -45 ℃ to+70 ℃)；Work environment requirements:- 30℃～+115℃(customizable according to user needs, can support up to -45 ℃~+115 ℃).
3. Relative humidity: not exceeding 95% at+20 ℃.
4. Protection level: IP55(Customizable according to user requirements). Scope of application: Altitude 0~4000m.
5. Contact capacity: AC 220V/3A、DC 220V/0.5A.
6. Power frequency withstand voltage: normally open contact 2000V/min, normally closed contact or single pole double throw contact: phase to phase 1000V/min, ground 2000V/min.
7. Insulation performance: normally open contact 2500V, 500M Ω, normally closed contact or single pole double throw contact: phase to phase 1000V, 500M Ω, ground 2500V, 1000M Ω.

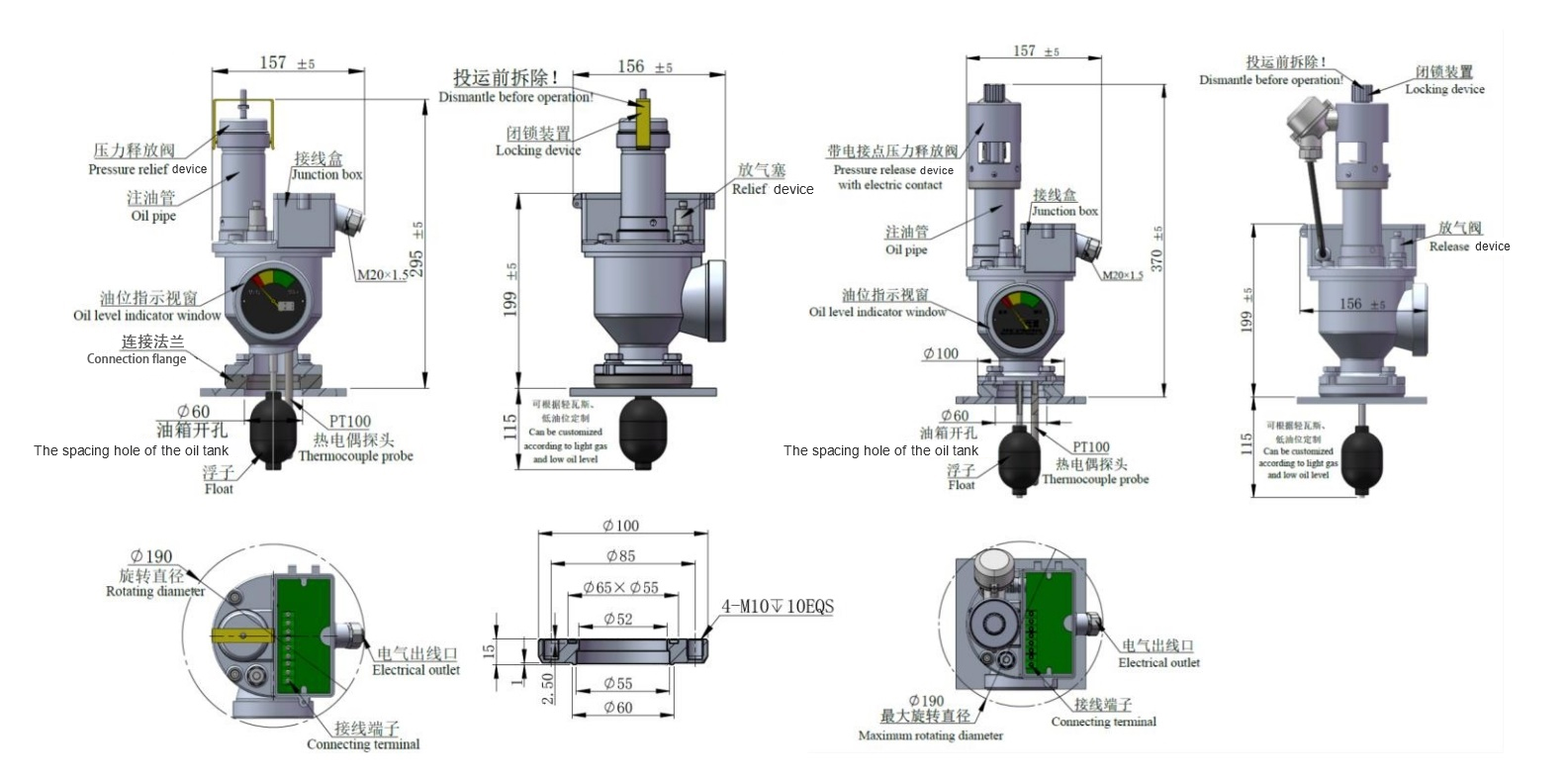

Dimensions of QYW-I Multi-functional Protector

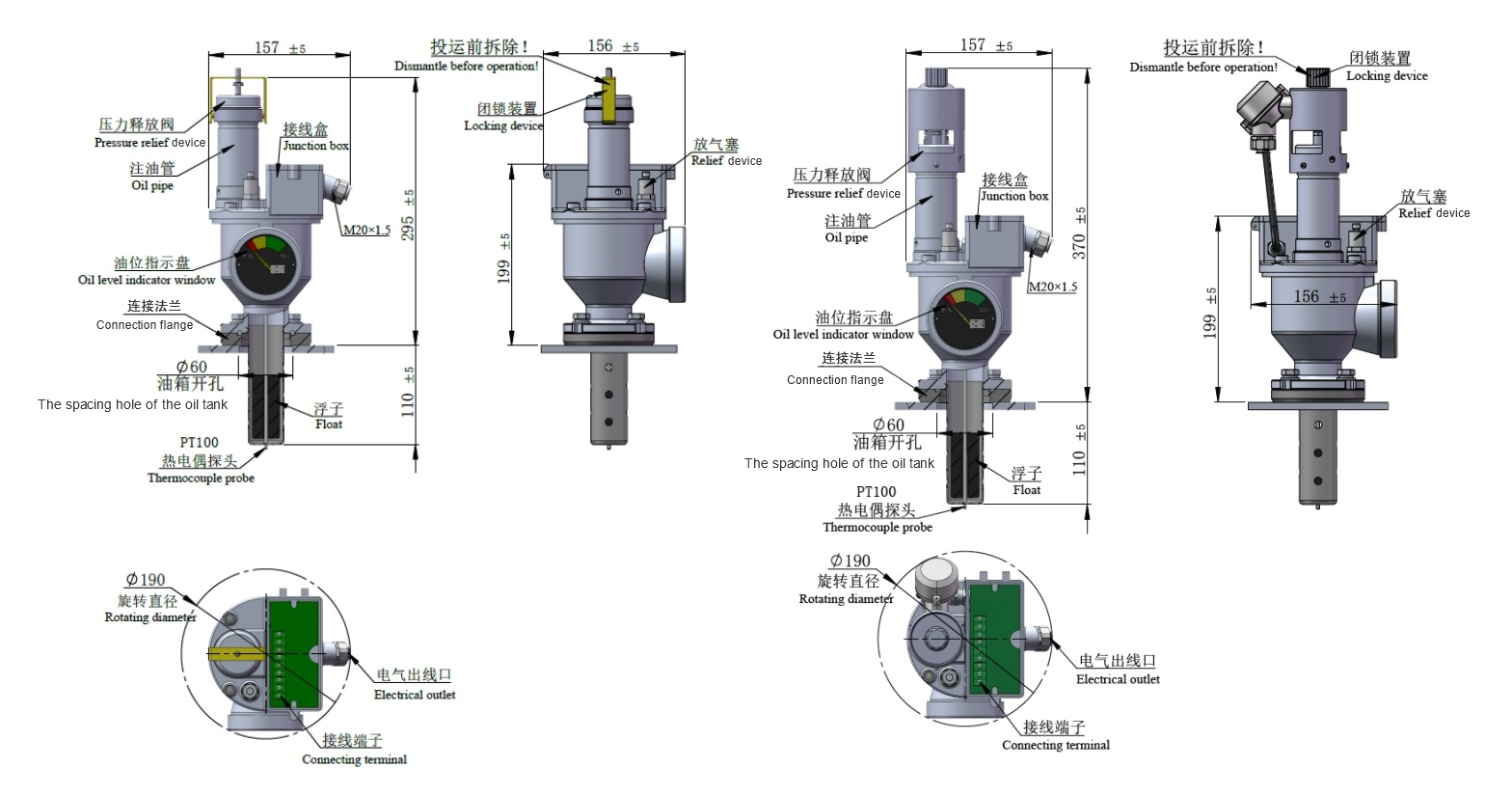

Dimensions of QYW-I Multi-functional Protector(with float protection cover)

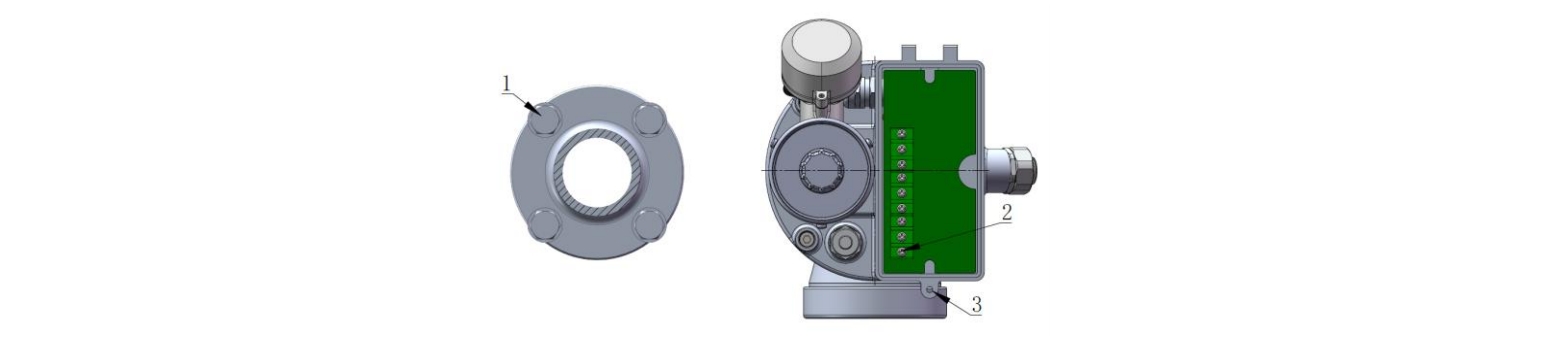

Torque Reference Table
| Number | Assembly position | Thread specification | Recommended torque | Assembly tool specifications | Notes | ||
| 1 | Connecting terminal | M10 bolt | 18～22Nm |  |
17mm | ||
| 2 | Terminal box cover | M4 | 1.5～2Nm | |
PH2 | Suggest manual installation |
|
| 3 | Directional oil inlet | M4 | 1.5～2Nm |  |
PH2 | Suggest manual installation |
|
The product provides a variety of color options, specifically described as follows:
| Color card No | Color | Optionality of choice |
| RAL7038 | Agate grey | Default |
| RAL7042 | A Traffic grey A | Optional |
| RAL7035 | Light grey | Optional |

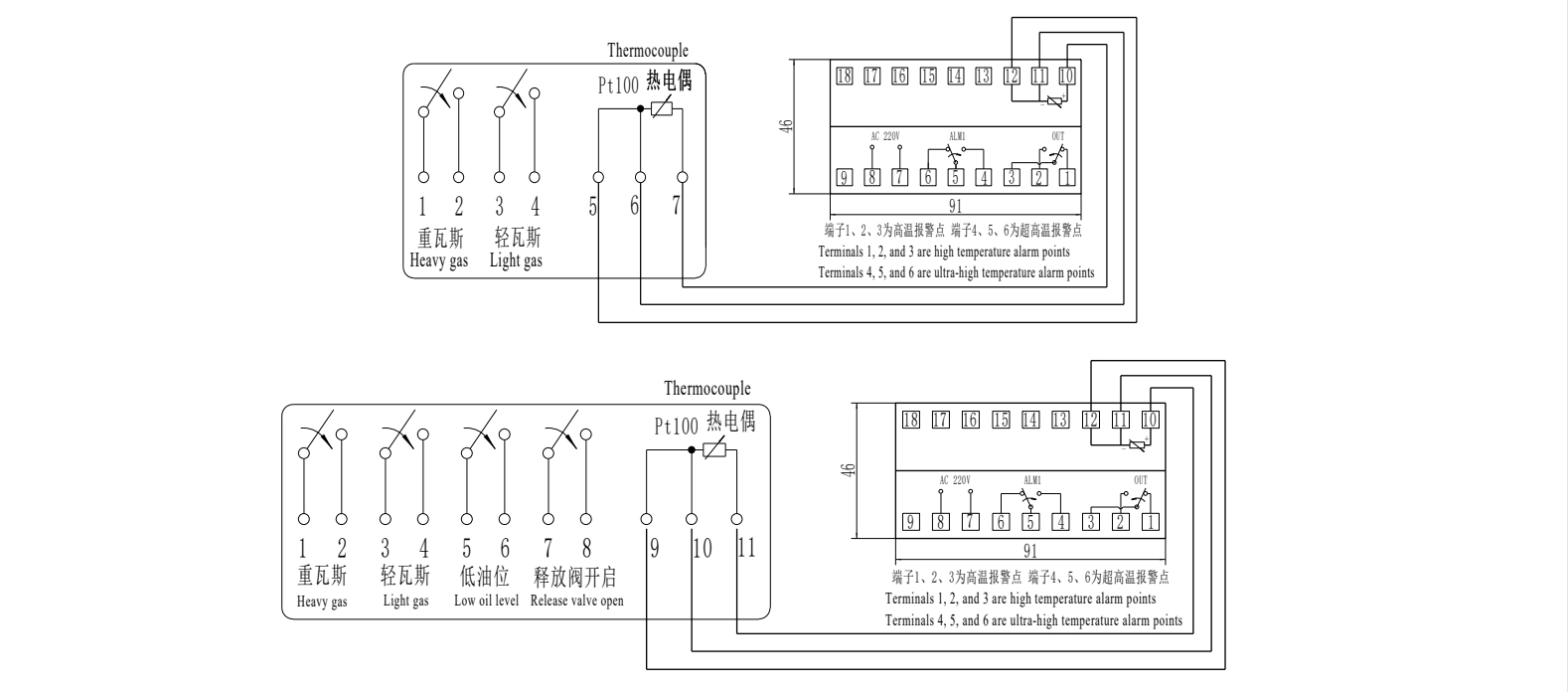

Panel opening size 91 (width) × 46 (high)
(The temperature control meter is embedded in the panel at a depth of 100)
