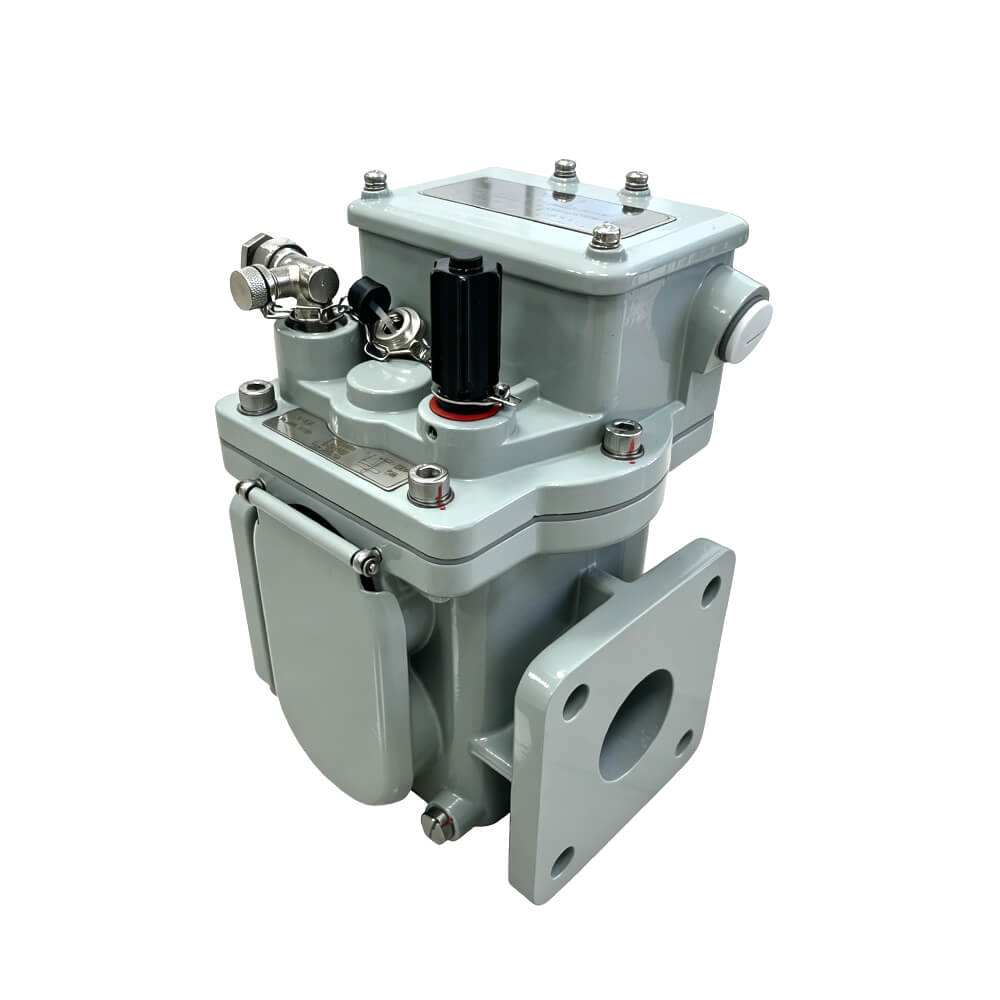

Scope of use:

(a) Installation method: The axis of the relay pipeline should be parallel to the transformer box cover, allowing for a slightly higher end leading to the oil storage tank, but the inclination of its axis with the horizontal plane should not exceed 4%;

(b)Environmental requirements: – 30 ℃~+70 ℃ (customizable to – 45 ℃~+70 ℃ according to user requirements); Working environment requirements: – 30 ℃~+115 ℃ (customizable according to user requirements, the maximum temperature can be – 45 ℃~+115 ℃);

(c) Relative humidity: not exceeding 95% at+20 ℃;

(d) Protection level: IP55(Customizable according to user requirements). Scope of application: Altitude 0~4000m.；

(e) Power frequency withstand voltage: normally open contact 2000V, 1min, normally closed contact or single pole double throw contact: phase to phase 1000V, 1min, ground 2000V, 1min;

(f) Insulation performance: normally open contact 2500V, 1000M Ω, normally closed contact or single pole double throw contact: phase to phase 1000V, 500M Ω, ground 2500V, 1000M Ω.

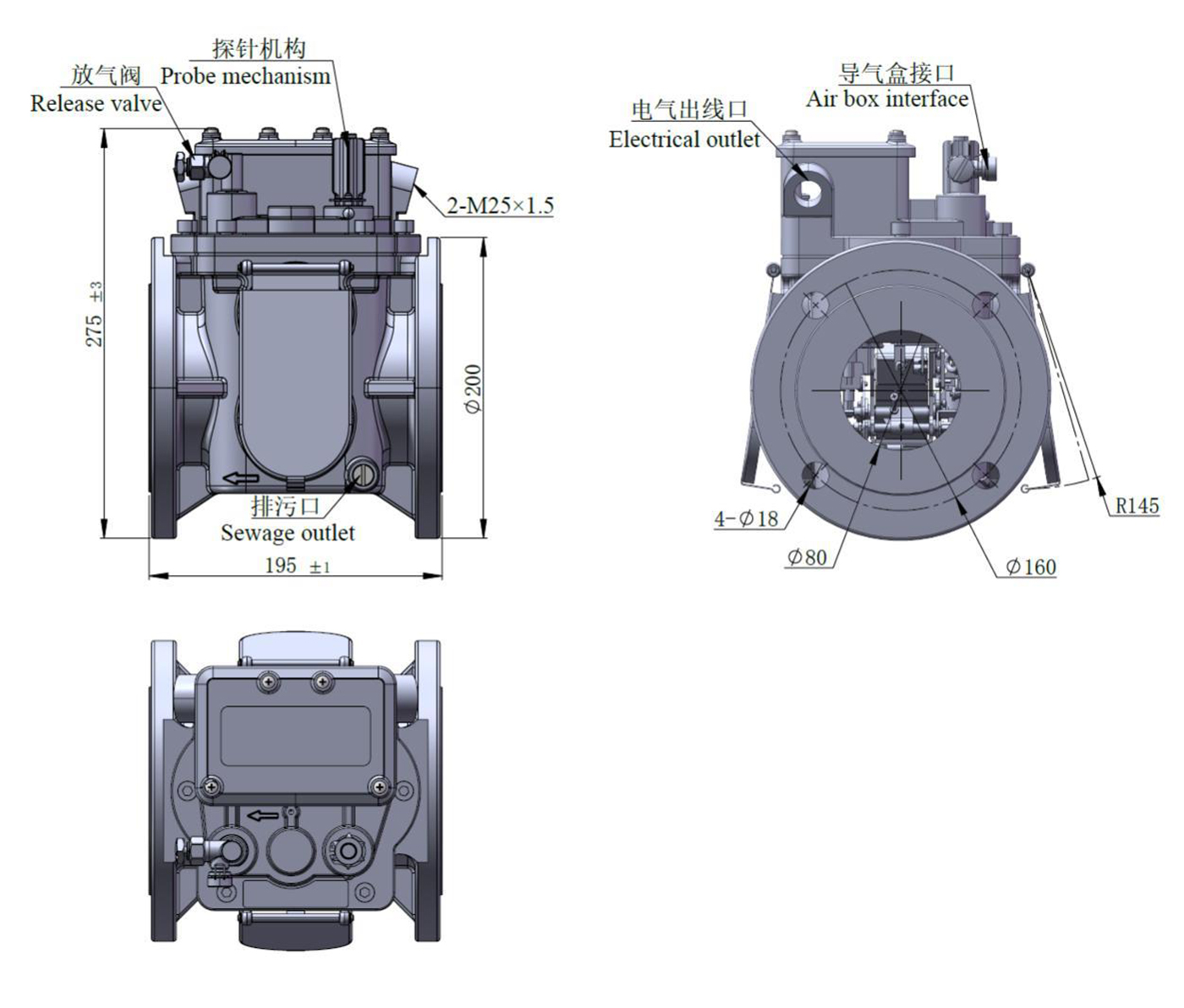

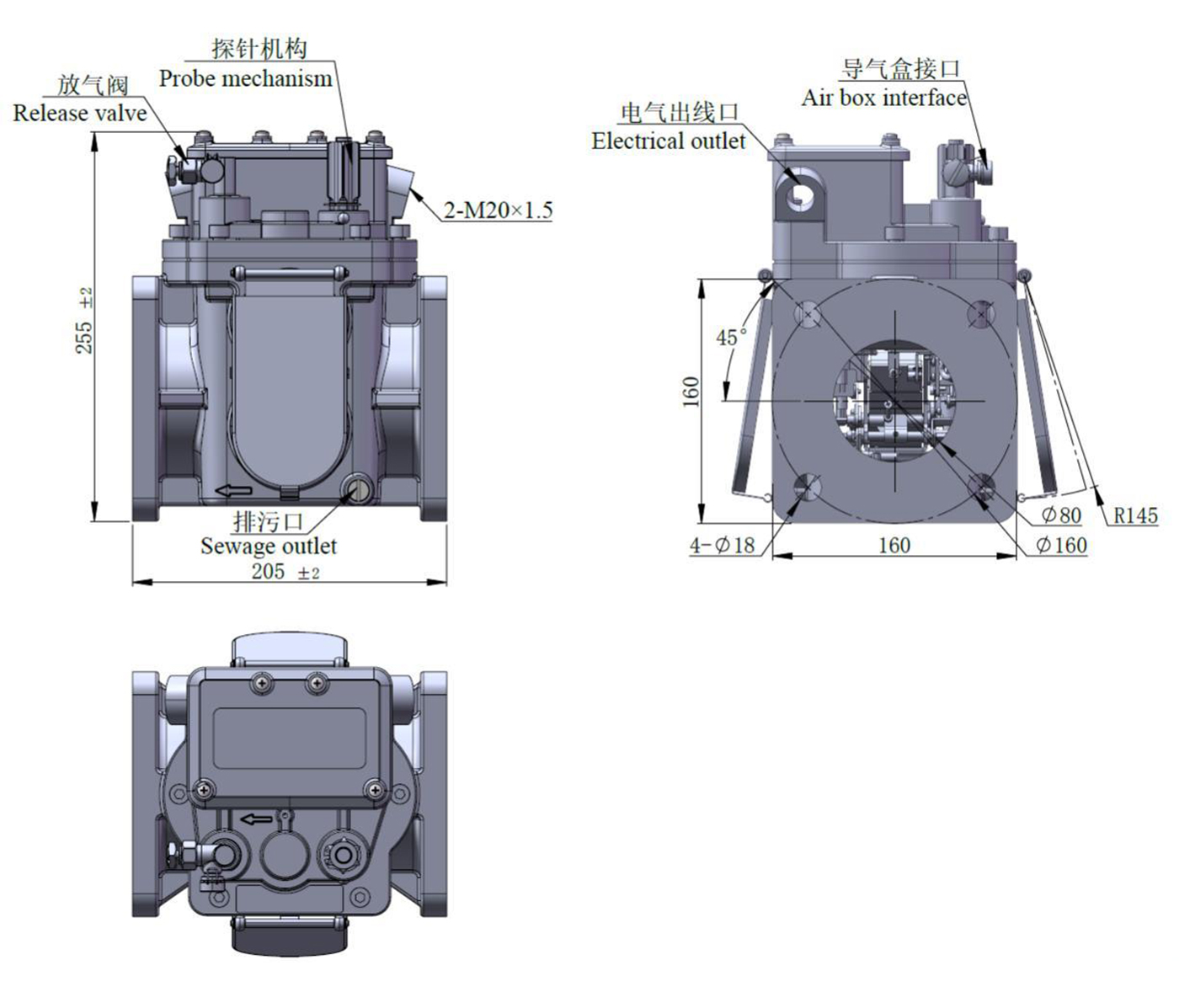

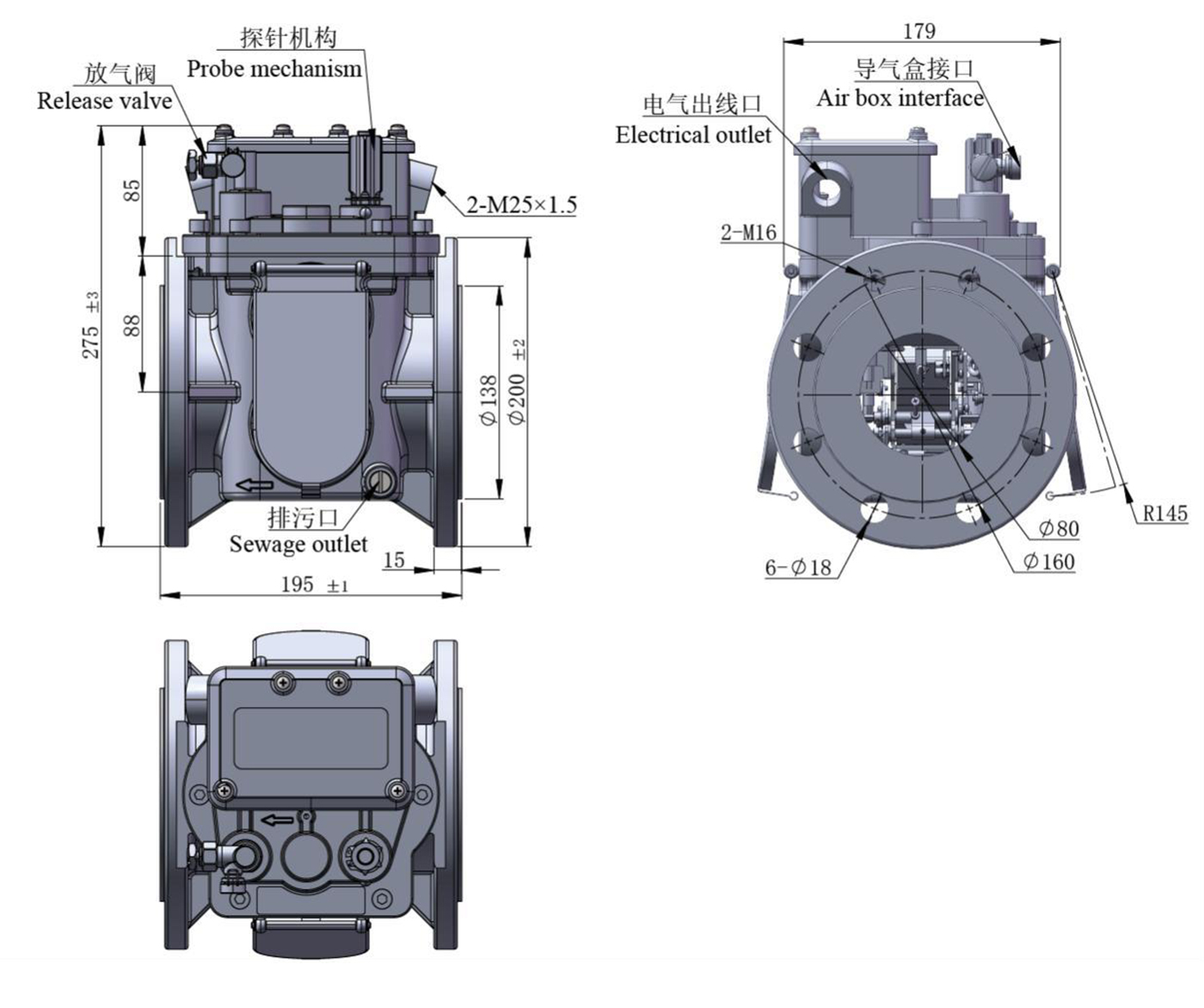

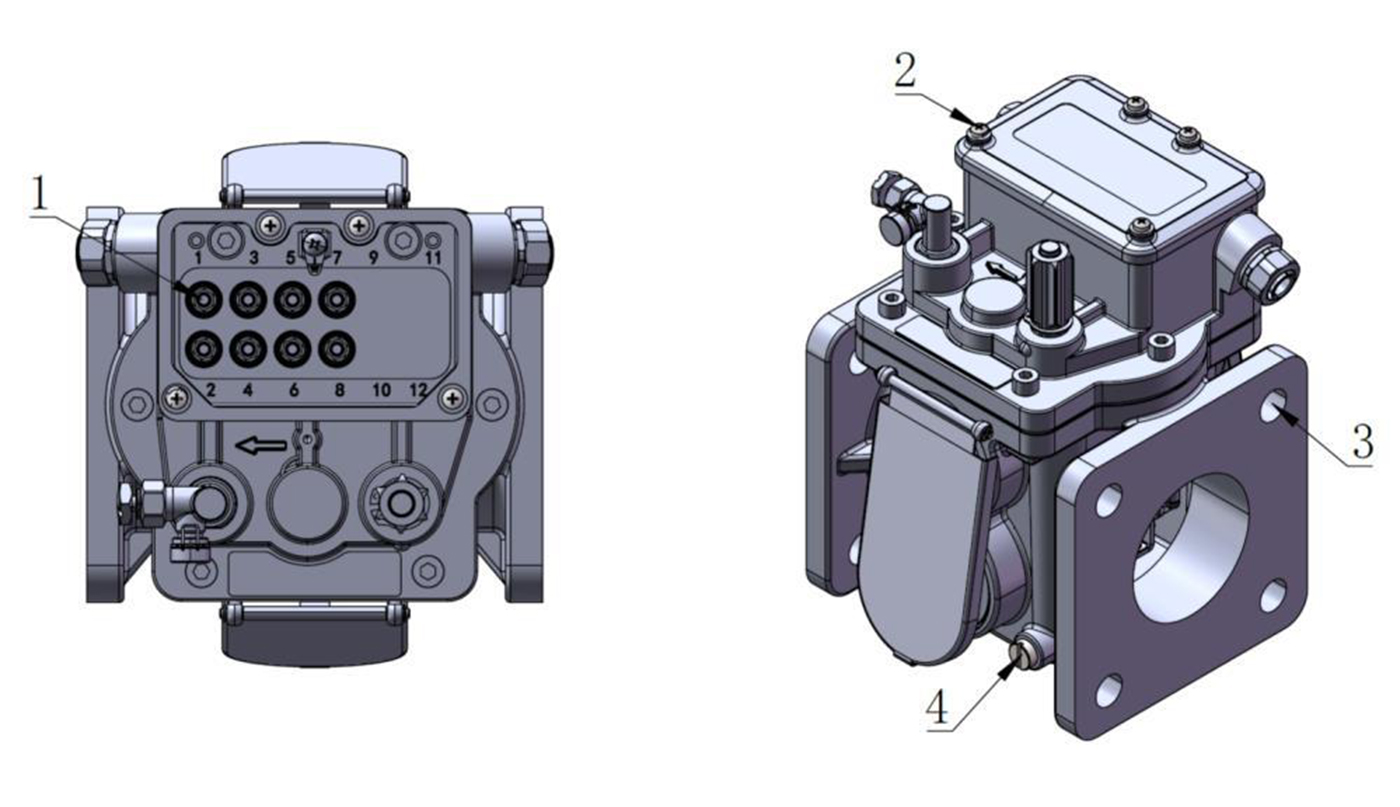

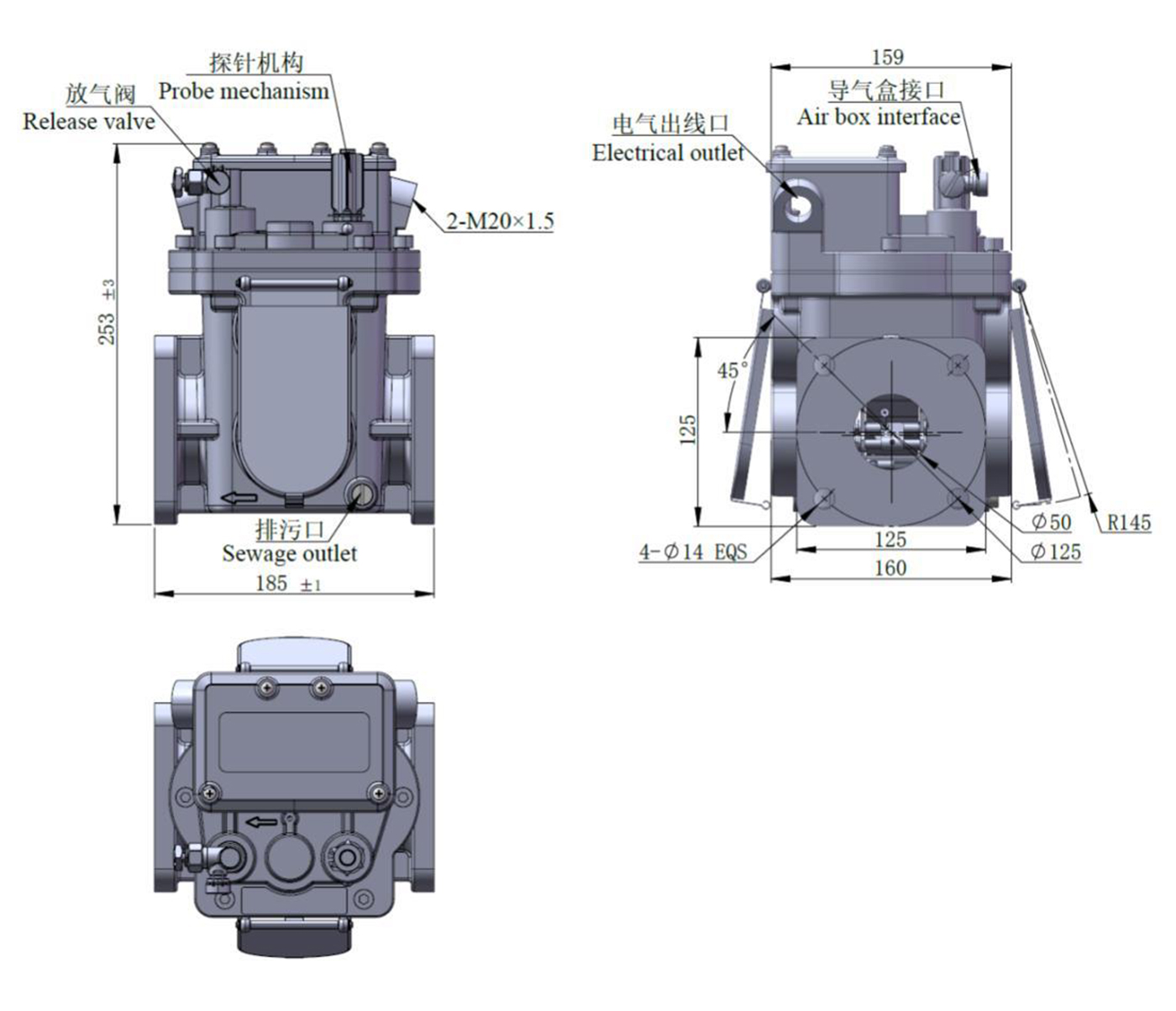

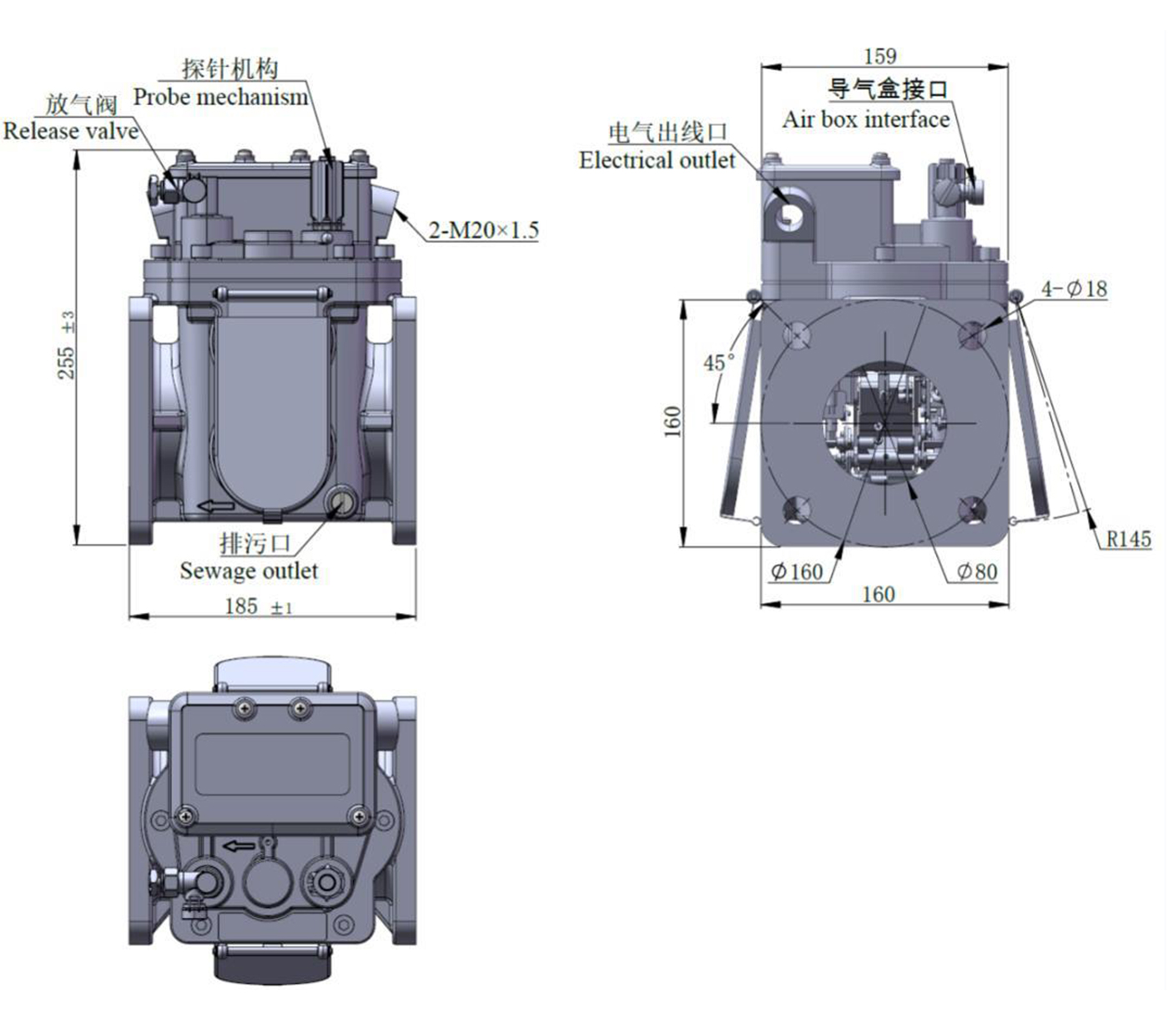

Example annotation:

QJ9-80A-08-4 TH indicates that the pipeline diameter for the 9th design is Φ 80mm, with the 08 series (1 light, 2 heavy, and 1 oil deficient), equipped with an air guide box and a gas relay with a gas guide tube length of 4m and three proof functions.
