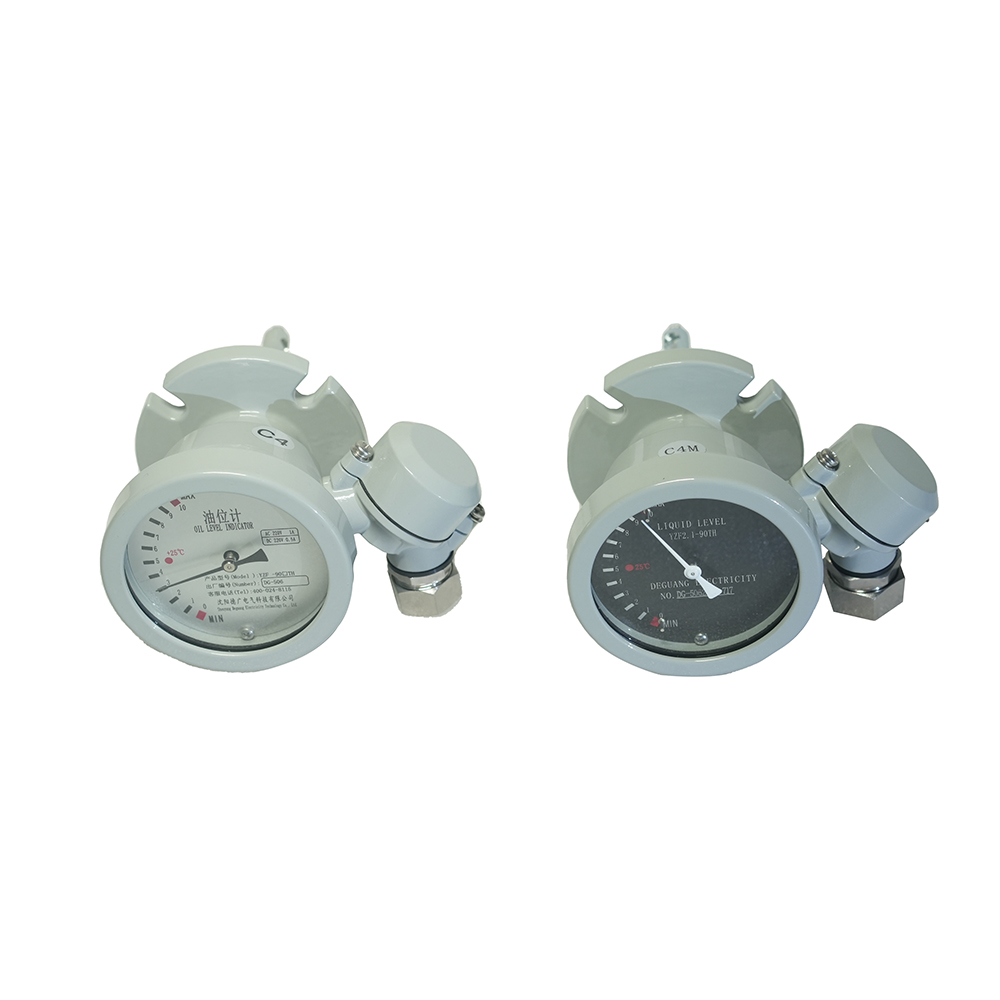

YZF-90 Series Pointer-type Oil Level Gauge
The YZF series pointer-type oil level gauge (abbreviated as oil level gauge) is an oil level testing device for transformer oil storage tanks. Its main structure includes: floating ball part, transmission part, magnetic coupling, indication part, and alarm part. The float part drives the indicator part through the transmission part and magnetic coupling to indicate the oil level, and finally indicates the oil level on the dial through the pointer. It also sends an alarm signal at the lowest and highest oil levels, achieving the purpose of remote monitoring.
1. Environmental requirements: -30 ℃ to+70 ℃(can be customized according to user needs to support up to -45 ℃ to+70 ℃); Work environment requirements:- 30℃～+115℃(customizable according to user needs, can support up to -45 ℃~+115 ℃).
2. Relative humidity: When the air temperature is 20 ℃, the relative humidity should not exceed 95%.
3. The oil temperature should not exceed 115 ℃.
4. Places without severe vibrations and bumps.
5. Indication error: less than 2.5% of the entire disk.
6. Long term stability: not less than 10000 cycles.
7. Sealing performance: 245kPa, no leakage for 20 minutes.
8. Protection level: IP55(Customizable according to user requirements). Scope of application: Altitude 0~4000m.
9. Switch capacity: AC 220V 5A， DC 220V 0.5A.
10. Power frequency withstand voltage: normally open contact 2000V, 1min, normally closed contact or single pole double throw contact: phase to phase 1000V, 1min, ground 2000V, 1min.
11. Insulation performance: normally open contact 2500V, 500M Ω, normally closed contact or single pole double throw contact: phase to phase 1000V, 500M Ω, ground 2500V, 500M Ω.

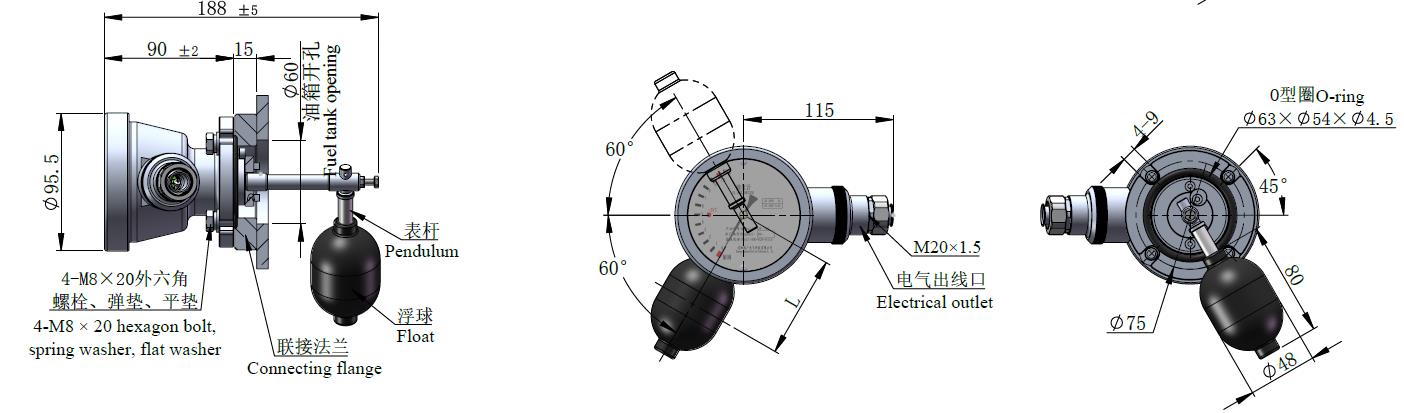

YZF-90 oil level gauge vertical outlet type I

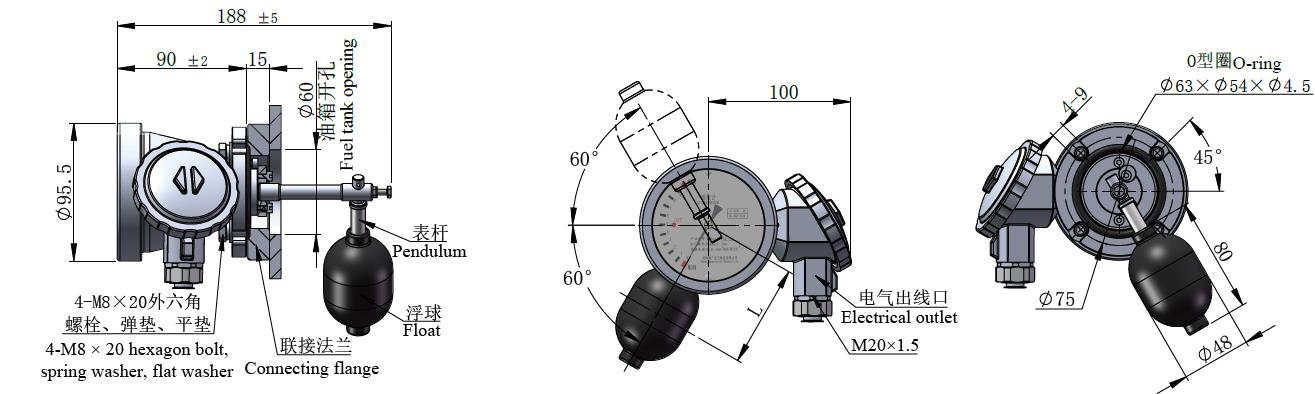

YZF-90 oil level gauge vertical outlet type Ⅱ

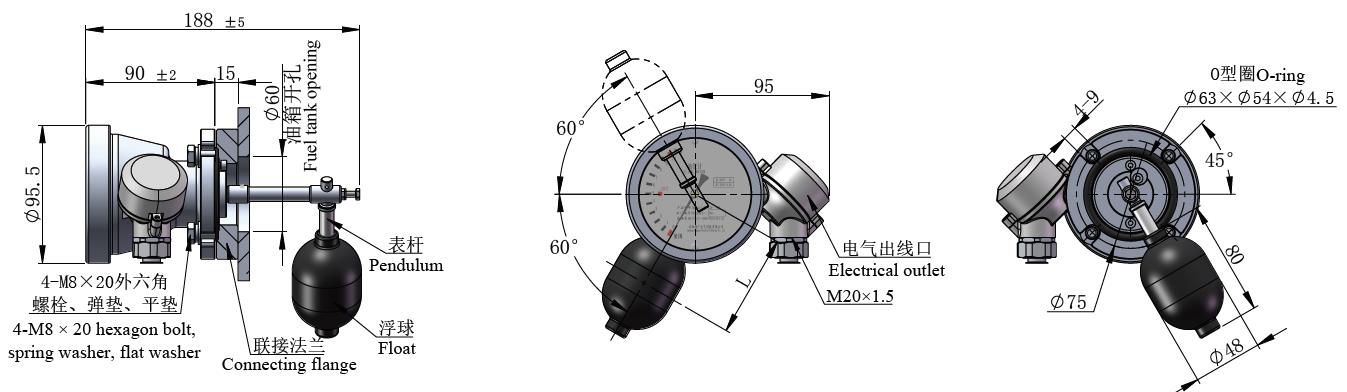

Horizontal output line of YZF-90 oil level gauge
The product provides a variety of color options, specifically described as follows:
| Color card No | Color | Optionality of choice |
| RAL7038 | Agate grey | Default |
| RAL7042 | A Traffic grey A | Optional |
| RAL7035 | Light grey | Optional |

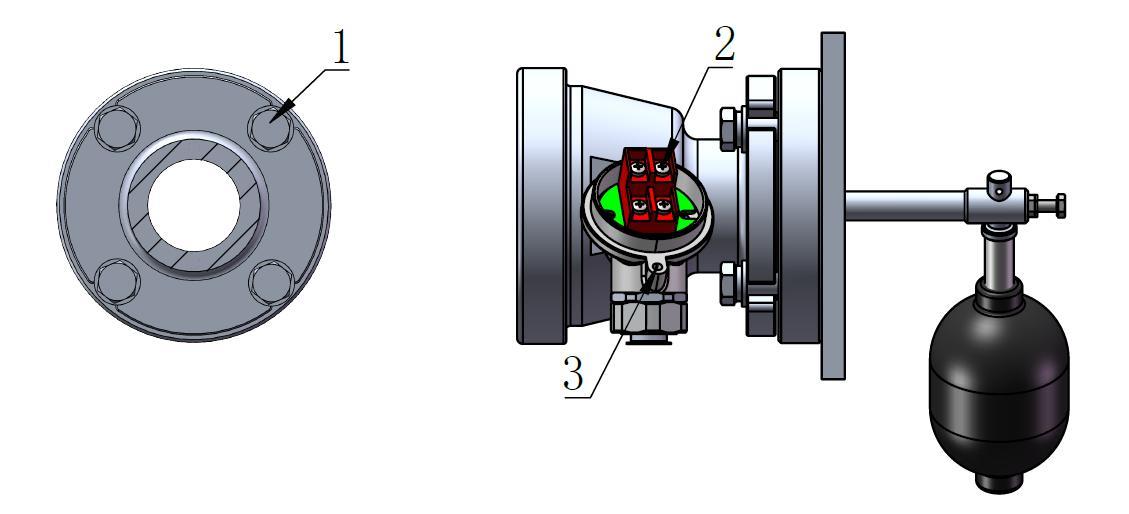

Torque Reference Table
| Number | Assembly position | Thread specification | Recommended torque | Assembly tool specification | Notes | |
| 1 | Flange installation hole | M8 bolt | 11～14Nm |  |
13mm | |
| 2 | Connecting terminal | M3 | 0.5～1Nm |  |
PH2 | Suggest manual installation |
| 3 | Terminal box cover | M4 | 1.5～2Nm | |
PH2 | Suggest manual installation |
