Product

1.Environmental requirements: -30 ℃ to+70 ℃(can be customized according to user needs to support up to -45 ℃ to+70 ℃); Work environment requirements:- 30℃～+115℃(customizable according to user needs, can support up to -45 ℃~+115 ℃).

2.Relative humidity: When the air temperature is 20 ℃, the relative humidity should not exceed 95%，Scope of application: Altitude 0~4000m.

3.The oil temperature should not exceed 115 ℃.

4.Places without severe vibrations and bumps.

5.Indication error: less than 2.5% of the entire disk.

6.Long term stability: not less than 10000 cycles.

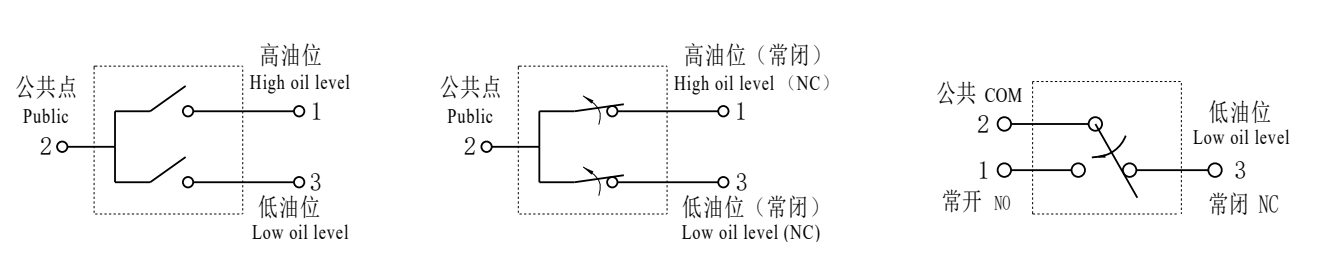

7.Switch capacity: AC 220V 5A， DC 220V 0.3A.

8.Power frequency withstand voltage: normally open contact 2000V, 1min, normally closed contact or single pole double throw contact: phase to phase 1000V, 1min, ground 2000V, 1min.

9.Insulation performance: normally open contact 2500V, 500M Ω, normally closed contact or single pole double throw contact: phase to phase 1000V, 500M Ω, ground 2500V, 500M Ω.
