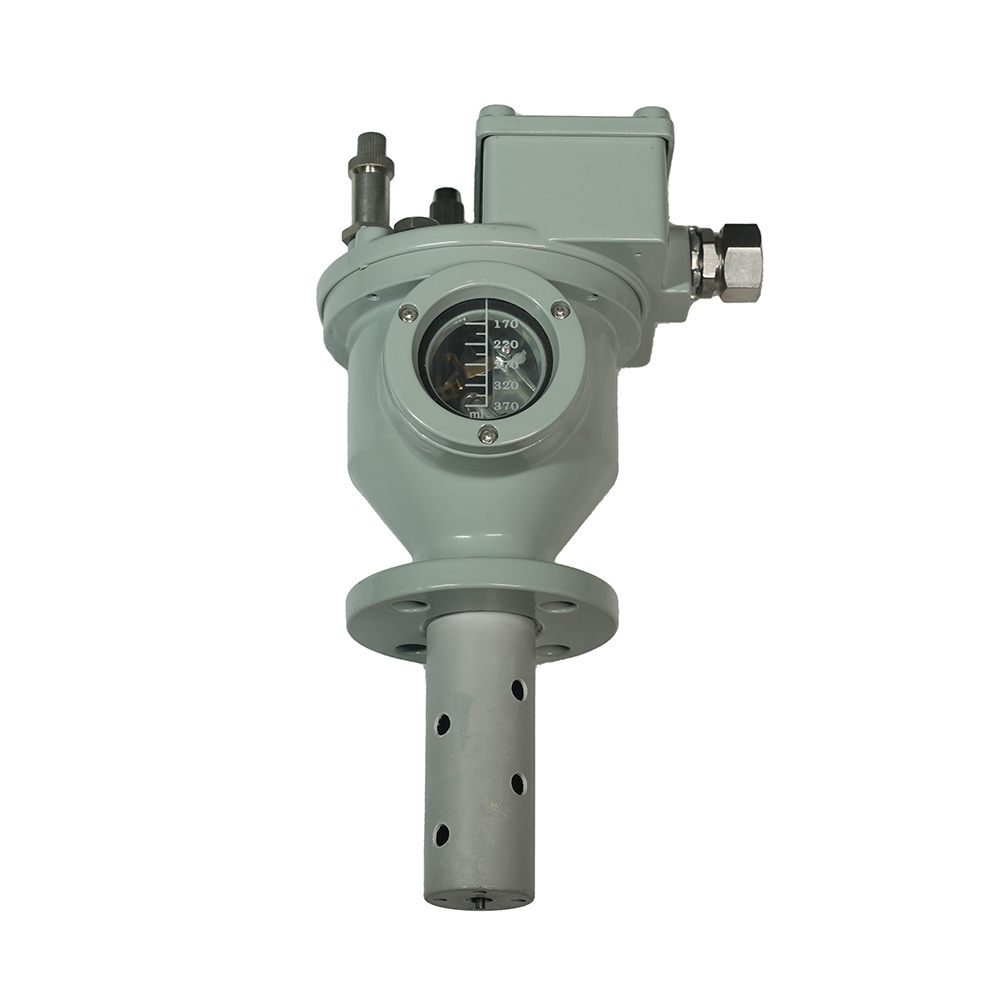

QJ2-40 Series Gas Relay

QJ2-40 series gas relay is mainly used to protect various types of oil-immersed hermetically sealed transformer. When the transformer is in operation, gas is generated due to internal fault and gathered in the gas collecting chamber of the gas relay. When the volume of gas reaches a certain degree, alarm or removal contact will be triggered to output alarm signal or removal signal, so as to protect the transformer.

1. Installation position: Installed on the top of the box cover.

2. Environmental requirements: -30℃~ +70℃(can be customized according to user needs to support up to -45℃ to+70℃); working environment: -30℃~ +115 ℃(customizable according to user needs, can support up to -45℃~+115℃).

3. Relative humidity: not exceeding 95% at+20 ℃.

4. Protection level: IP55 (Customizable according to user requirements). Scope of application: Altitude 0-4000m.

5. Contact capacity: AC 220V/1A、DC220V/0.5A.

6. Power frequency withstand voltage: 2000V/min.

7. Insulation performance: 2500V, 500M.

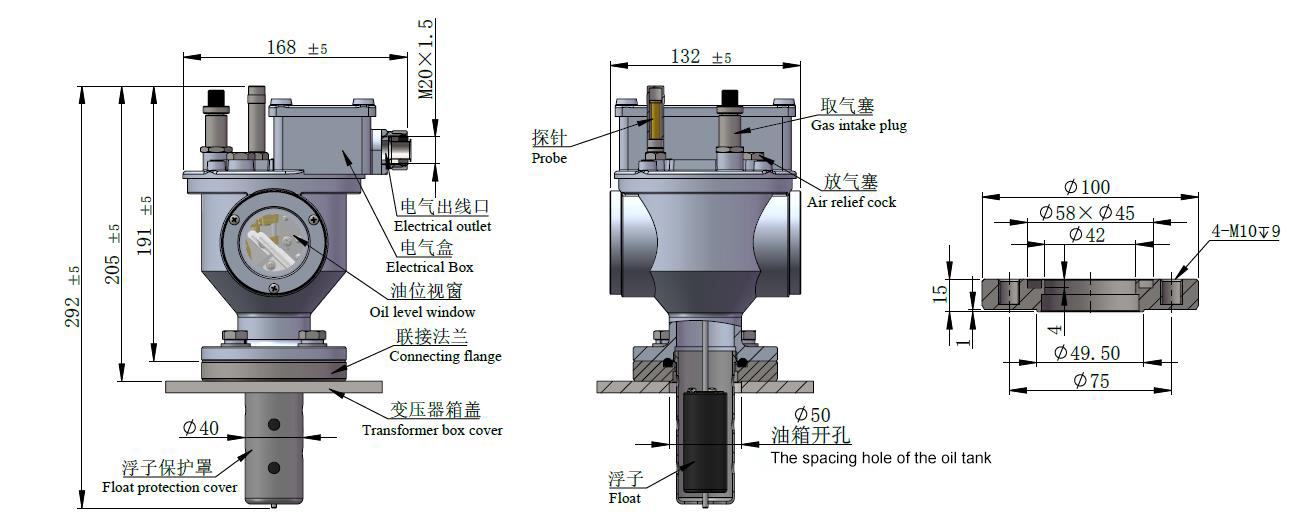

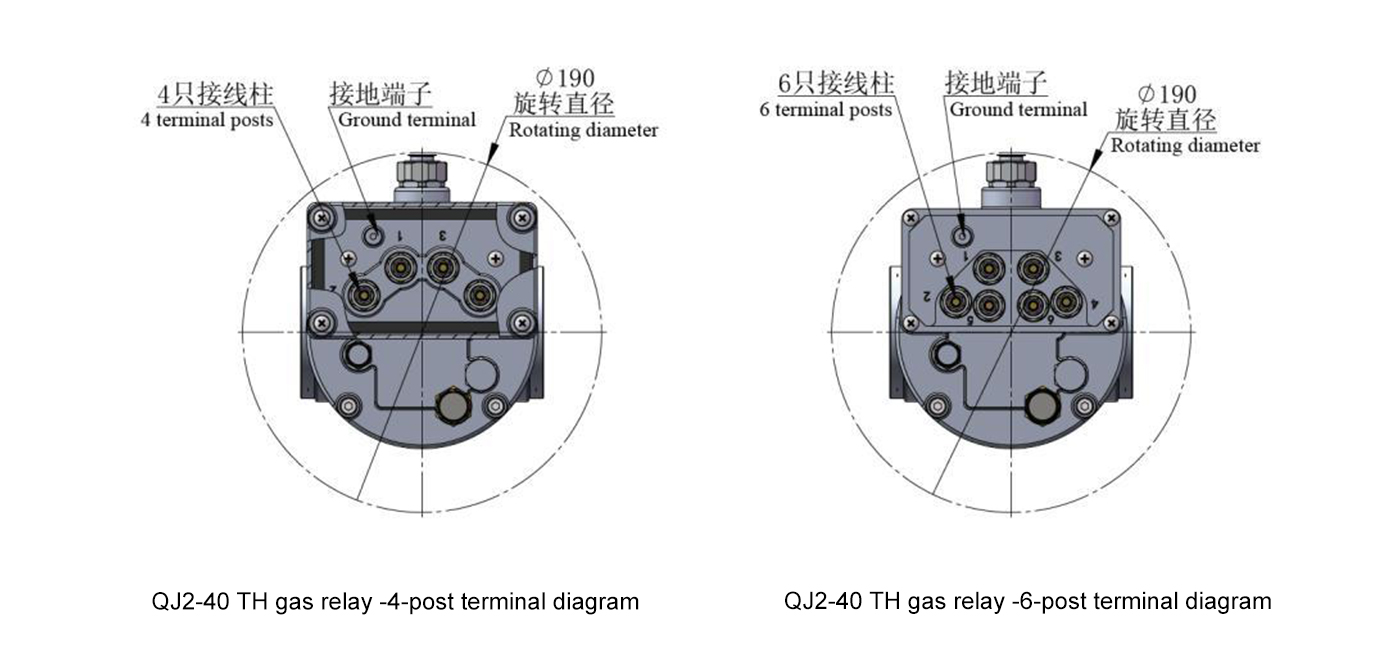

Outline Dimensional Drawing of QJ2-40 TH Gas Relay

The product provides a variety of color options, specifically described as follows:

Color card No	Color	Optionality of choice
RAL7038	Agate grey	Default
RAL7042	A Traffic grey A	Optional
RAL7035	Light grey	Optional

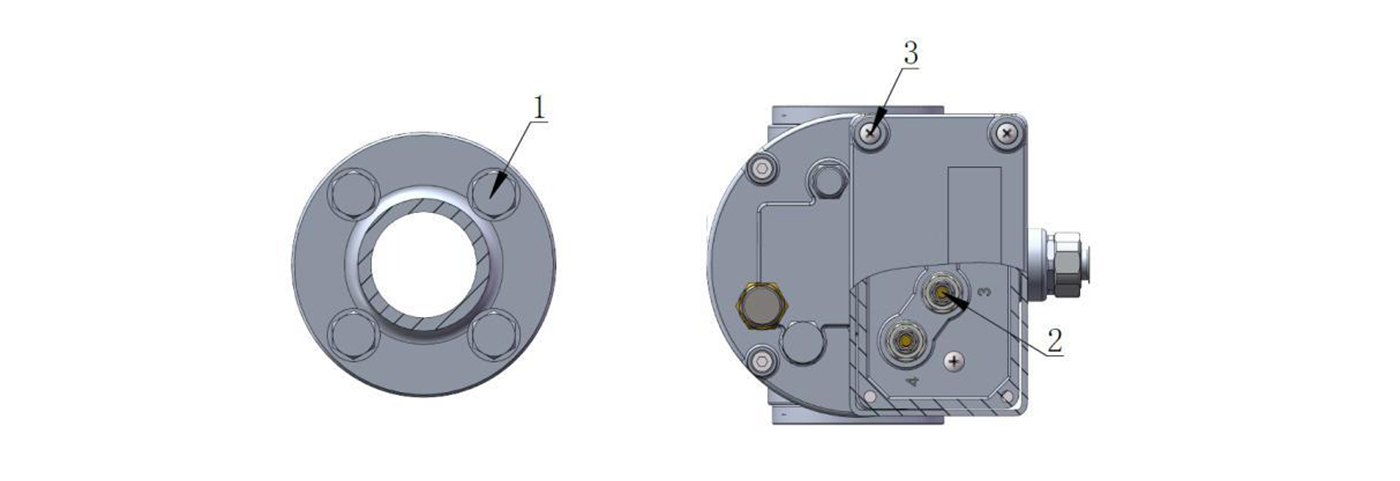

Torque Reference Table

Number	Assembly position	Thread specification	Recommended torque	Assembly tool specification		Notes
1	Flange installation hole	M10 bolt	18～22Nm		17mm
2	Connecting terminal	M5	4～5Nm		8mm	Suggest manual installation
3	Terminal box cover	M5	4～5Nm		PH2	Suggest manual installation
