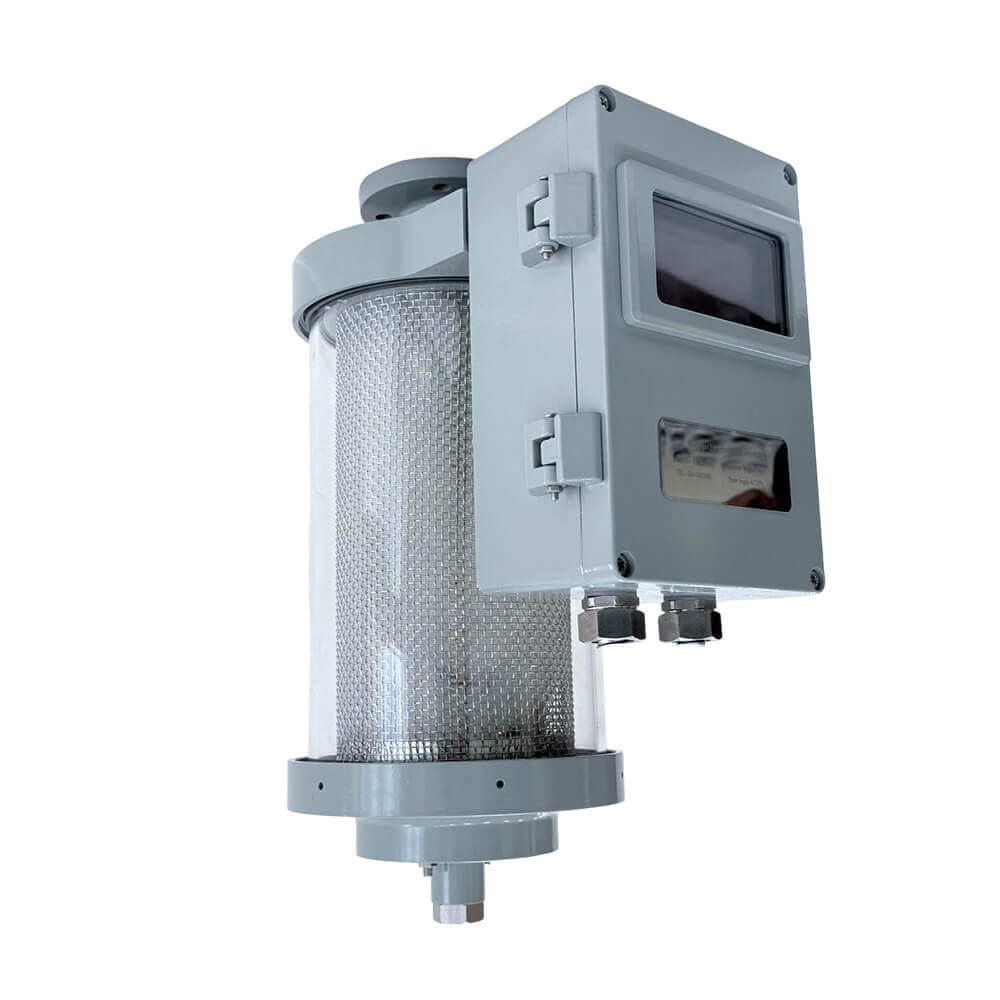

MXS-3Kg Intelligent Maintenance-free Breather
The MXS-3Kg intelligent maintenance-free breather is installed in the pipelines of oil-filled transformers, transformers, on-load tap changers, or other electrical equipment’s oil storage tanks. It is used to purify and remove the moisture and dust in the air that enters the oil storage tank, ensuring the cleanliness and insulation strength of the transformer oil.
1. Application scope: General areas and humid hot regions.
2. Environmental requirements: -30℃ to +70℃.
3. Absorbent material: Colorless silica gel.
4. Protection level: IP55.
5. Control system power supply: AC 220/230V 50/60Hz.
6. Drying agent weight: 1.5Kg, 3Kg, 5Kg, 10Kg.
7. Communication method: RS485, 4-20MA.
8. Breathing force: ≤50KPa.
9. Heater power: 3Kg ≤ 500W.
10. Ventilation resistance: ≤0.005MPa.
