1. Technical Specifications：

Thickness (T) :  ≤12mm /  12<T≤18mm /   >18mm
Thickness Tolerance : ±0.5mm /   ±1.0mm /   ±1.5mm
Width : (W, I) 50–200mm /  >200mm
Width Tolerance : ±2.0mm /  ±2.5mm
Length :  ≤1200mm /   1200–2400mm /   >2400mm
Length Tolerance :  ±3.0mm /   ±4.0mm /  ±5.0mm
Round Radius (r) :  3＜r≤15mm
Angle :  90°（Tolerance ±3°）

2.Product Advantages:

•Good Insulation Performance :
Made of insulation pressboard, suitable for insulation structures inside transformers.

•Reliable Mechanical Strength :
Provides stable support and fixing performance during transformer operation.

•Easy Installation :
The L-shaped design simplifies assembly and improves installation efficiency.

•Customizable Dimensions :
Available in different thicknesses, widths, lengths, and structural dimensions according to customer requirements.

3.Applications :

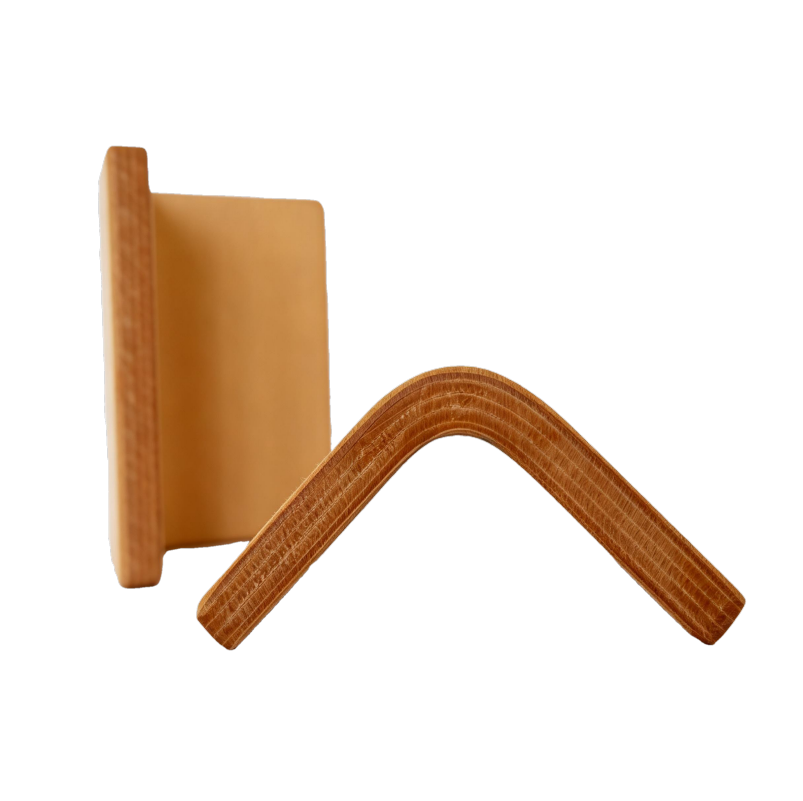

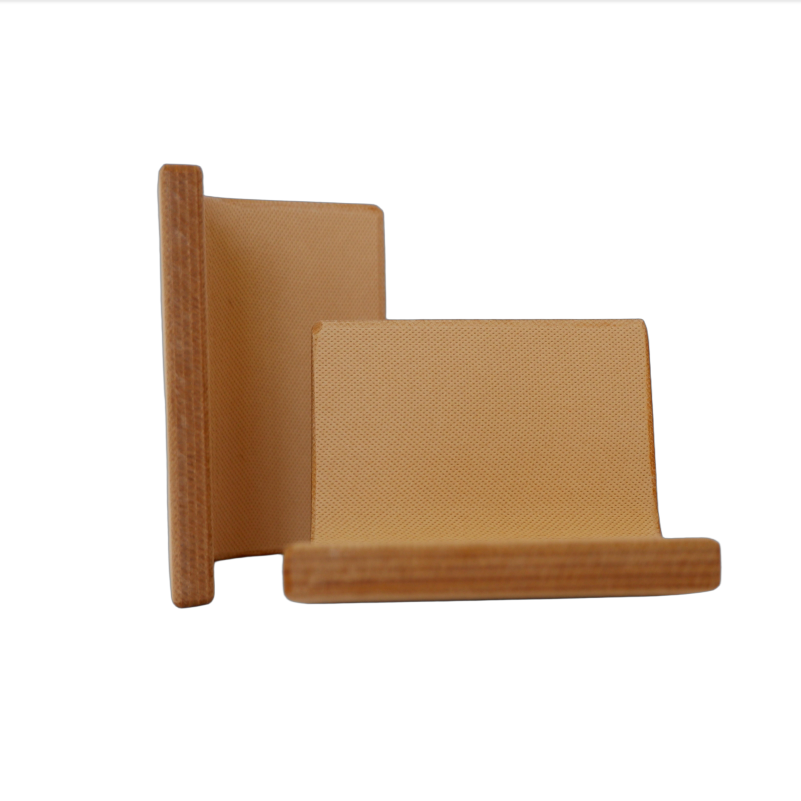

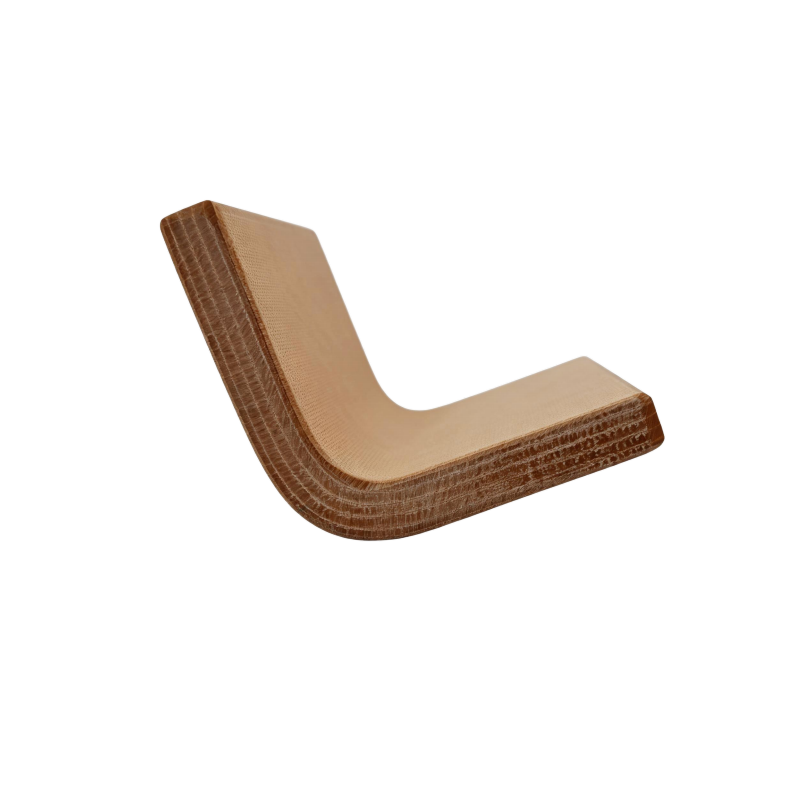

The Insulation Pressboard L Shape Clamp is widely used in oil-immersed transformers, especially large power transformers above 110kV.

It is mainly applied for internal insulation support, fixing, and structural connection.
