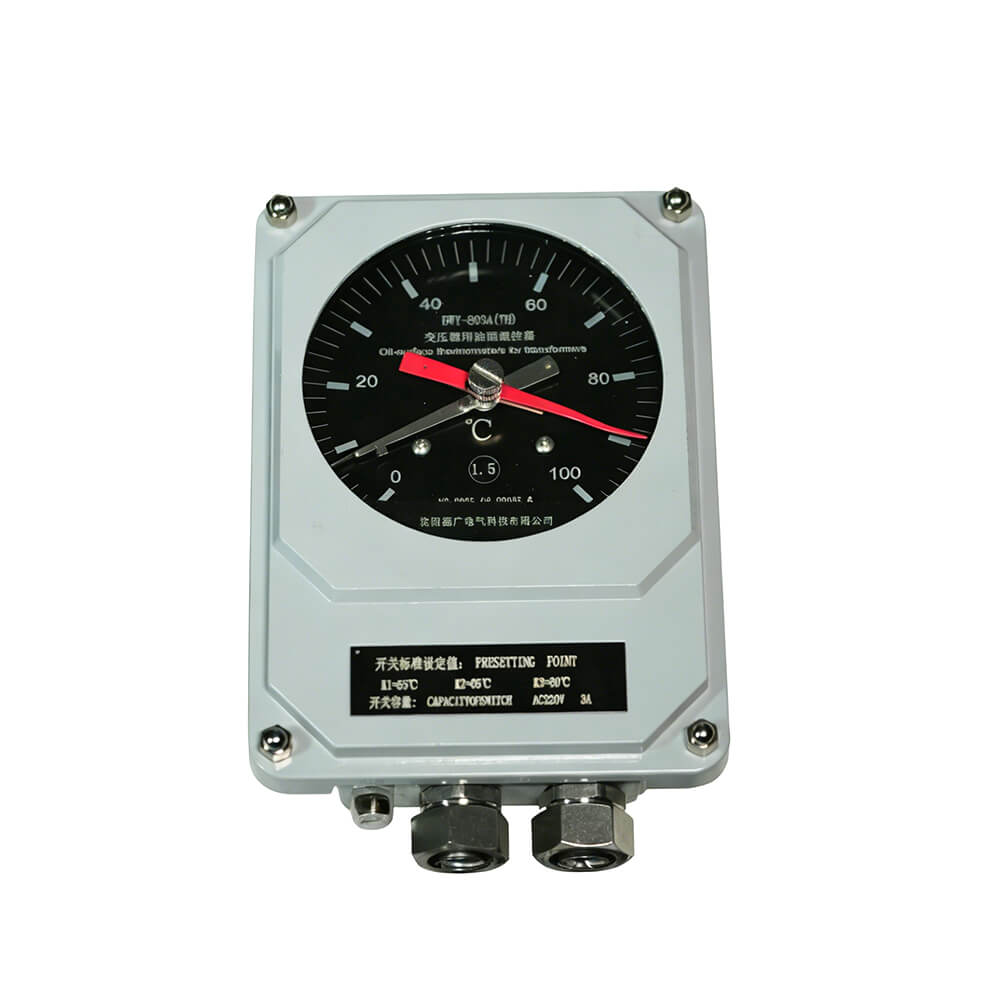

BWY Series Oil Temperature Indicator
The series of BWY oil temperature indicator is designed based on the principle of composite temperature rise. It is suitable for temperature detection and control of other equipment. The instrument has good protective performance and can work normally under outdoor conditions. It is equipped with four or six adjustable control switches, which can be used separately for the start-up of transformer cooling systems and signal alarms. At the same time, it can transmit temperature signals to the control center for Synchronous display and control of the transformer oil temperature.
1.Output signal: PT100 platinum resistance value, 4-20MA
2.Working conditions: Environmental temperature (-40-+55) ℃ , relative humidity ≤95%.
3.Measurement range: Conventional (0-150) ℃.Other ranges can be customized.
4.Accuracy: Level 1.5.
5.Switching performance: Four or six sets of adjustable switches, each set of switches can be set arbitrarily within the full range.
6.Switching action error：±4℃
7.Switching action error: (6±2) ℃
8.Rated power of switch: AC220V 5A.

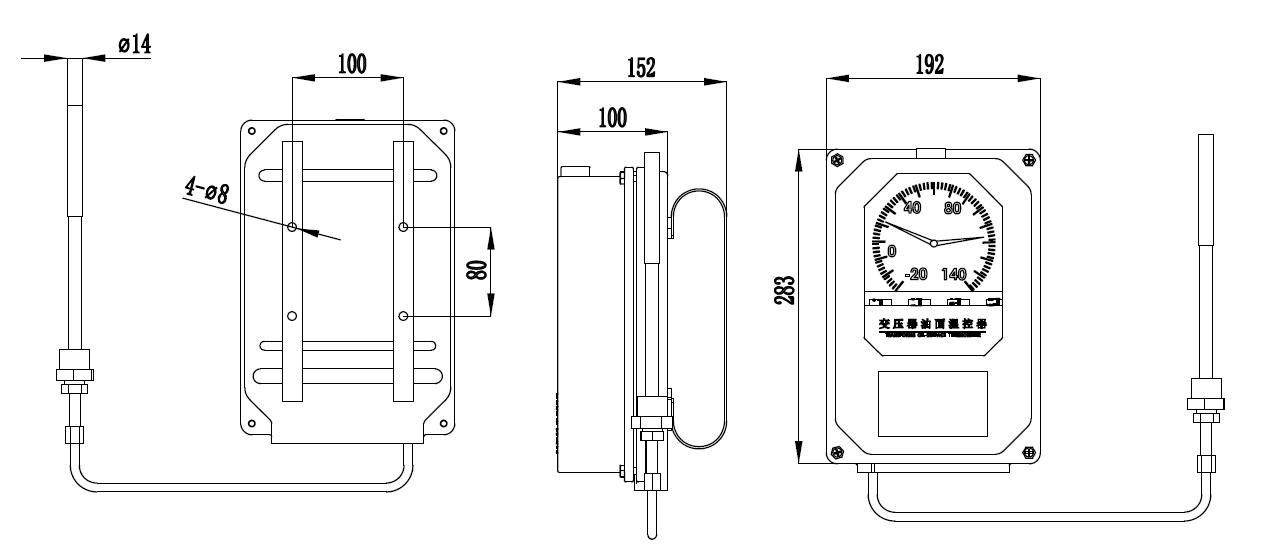

9.Temperature bulb size: (Φ 14 ×150)mm, with an installation thread of (M27 ×2)mm.
10.The regular length of the capillary tube is 6m. Other lengths can be customized
11.Protection level: IP55
